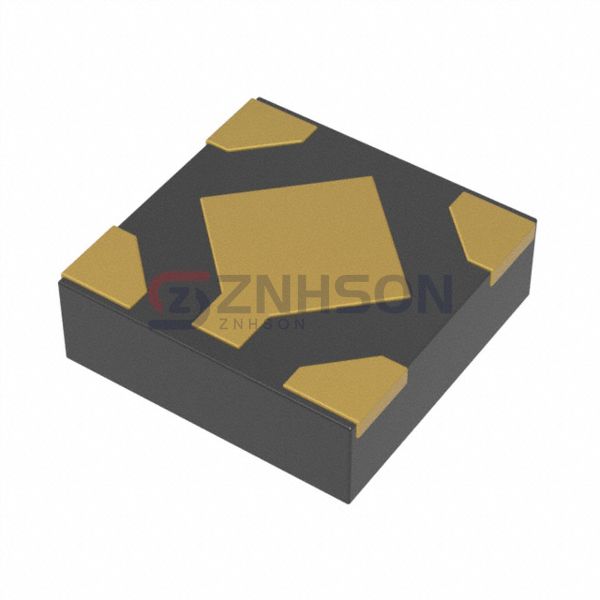

TCR5AM10,LF

Toshiba Semiconductor and Storage

Manufacturer

Toshiba Semiconductor and Storage

Description:

IC REG LINEAR 1V 500MA 5DFNB

Datasheet:

TCR5AM10,LF Datasheet

$0.51

Available to order

Reference Price (USD)

5,000+

$0.12865

10,000+

$0.12035

25,000+

$0.11039

50,000+

$0.10624

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TCR5AM10,LF by Toshiba Semiconductor and Storage is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications. In the PMIC - Voltage Regulators - Linear category, the TCR5AM10,LF stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions. The TCR5AM10,LF is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.25V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 55 µA
Current - Supply (Max): 68 µA
PSRR: 70dB ~ 40dB (1kHz ~ 10Hz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 85°C (TJ)
Mounting Type: Surface Mount
Package / Case: 4-XDFN Exposed Pad
Supplier Device Package: 5-DFNB (1.2x1.2)
