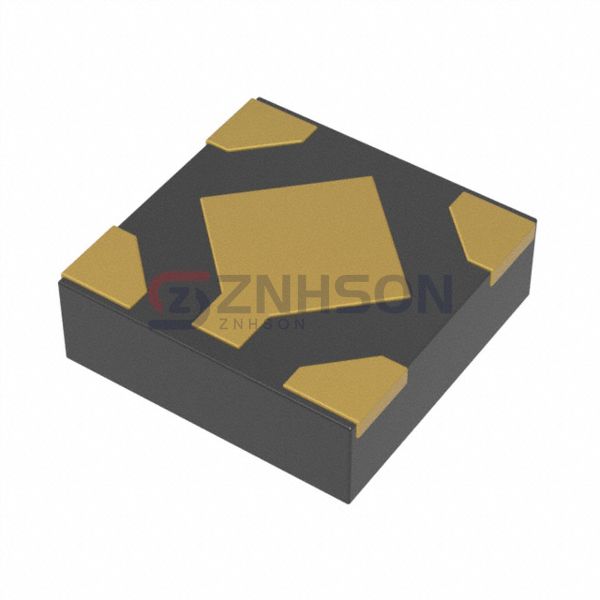

TCR5AM105A,LF

Toshiba Semiconductor and Storage

Manufacturer

Toshiba Semiconductor and Storage

Description:

IC REG LINEAR 1.05V 500MA 5DFNB

Datasheet:

TCR5AM105A,LF Datasheet

$0.14

Available to order

Reference Price (USD)

5,000+

$0.13050

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Toshiba Semiconductor and Storage's TCR5AM105A,LF represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the TCR5AM105A,LF are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Not For New Designs
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.05V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.25V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 55 µA
Current - Supply (Max): -
PSRR: 70dB ~ 40dB (1kHz ~ 10Hz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 85°C (TJ)
Mounting Type: Surface Mount
Package / Case: 4-XDFN Exposed Pad
Supplier Device Package: 5-DFNB (1.2x1.2)
