TD-112-T-A
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 24POS 2.54MM
$3.77
Available to order
Reference Price (USD)
1+
$3.00000
10+
$2.88400
25+
$2.64320
50+
$2.52320
100+
$2.40300
250+
$2.10264
500+
$2.04256
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the TD-112-T-A rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.166" (4.22mm)
- Contact Length - Post: 0.156" (3.96mm)
- Overall Contact Length: 0.477" (12.12mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
ZLTMM-105-65-G-D-315
TE Connectivity AMP Connectors
4-794633-2
Sullins Connector Solutions
NRPN152MAMS-RC
Samtec Inc.
TSM-111-01-F-SH
Samtec Inc.
FTSH-118-01-L-MT-TR
Mill-Max Manufacturing Corp.
435-40-212-00-160000
Samtec Inc.
TMM-124-01-T-S-SM-P
TE Connectivity AMP Connectors

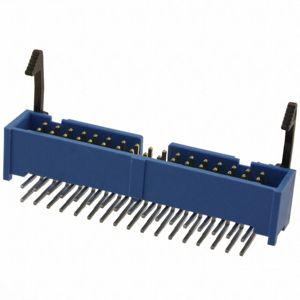

3-1761607-1
