TEM-115-02-03.0-H-D-WT
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 30POS 0.8MM
$10.73
Available to order
Reference Price (USD)
1+
$7.46000
10+
$7.15300
100+
$5.90900
500+
$4.97600
1,000+
$4.35400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TEM-115-02-03.0-H-D-WT male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.063" (1.60mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-103240-0-06
TE Connectivity AMP Connectors
6-104069-1
Samtec Inc.
FTSH-150-02-F-D
Hirose Electric Co Ltd
DF13-7P-1.25H(21)
Molex

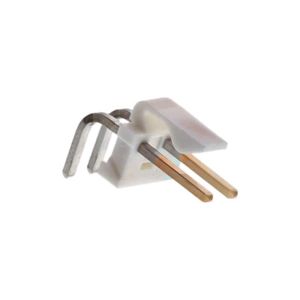

0417920511
Molex

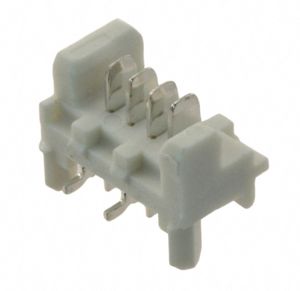

0908140904
Samtec Inc.

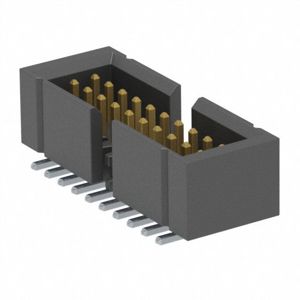

FTMH-110-03-F-DV-ES
JST Sales America Inc.

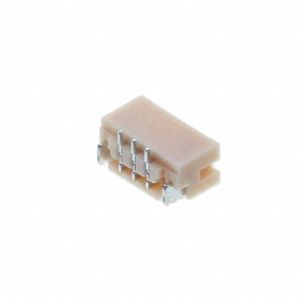

BM03B-SURS-TF(LF)(SN)
