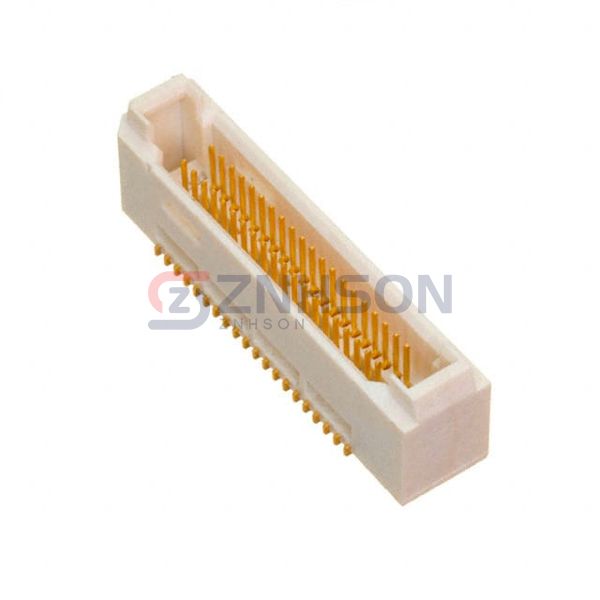

TEM-120-02-03.0-G-D-L1
Samtec Inc.
Samtec Inc.
.8MM TIGER EYE MICRO TERMINAL
$11.08
Available to order
Reference Price (USD)
1+
$7.68000
10+
$7.36000
100+
$6.08000
500+
$5.12000
1,000+
$4.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TEM-120-02-03.0-G-D-L1 from Samtec Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the TEM-120-02-03.0-G-D-L1 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Samtec Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.063" (1.60mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
2-1971817-4
Hirose Electric Co Ltd
DF51A-30DP-2DSA(01)
TE Connectivity AMP Connectors
9-146274-0-06
Preci-Dip
350-80-137-01-609101
Preci-Dip
800-80-029-20-001101
Samtec Inc.
FTSH-111-01-L-DV-A
Samtec Inc.

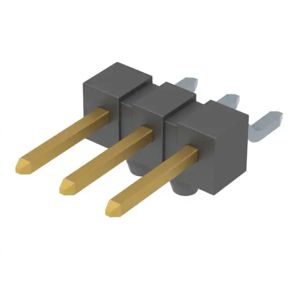

TSM-103-01-S-SH-A-P-TR
Molex
22-28-4038
Preci-Dip

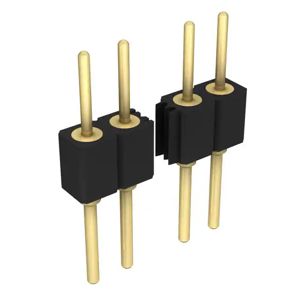

350-10-115-00-012101
