TFM-115-02-L-DH
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 30POS 1.27MM
$10.24
Available to order
Reference Price (USD)
1+
$10.24000
500+
$10.1376
1000+
$10.0352
1500+
$9.9328
2000+
$9.8304
2500+
$9.728
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TFM-115-02-L-DH from Samtec Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the TFM-115-02-L-DH offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Samtec Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.131" (3.33mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.225" (5.72mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
Related Products
Mill-Max Manufacturing Corp.
852-90-014-10-001000
TE Connectivity AMP Connectors
5-146254-2
Samtec Inc.
BDL-103-T-F
Mill-Max Manufacturing Corp.
852-10-062-20-001000
Samtec Inc.
TST-110-02-G-D
TE Connectivity AMP Connectors
521383-5

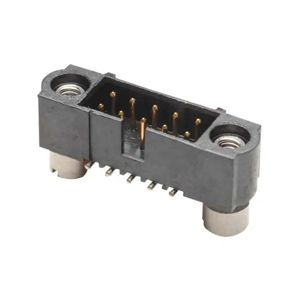

Harwin Inc.
M80-5132622

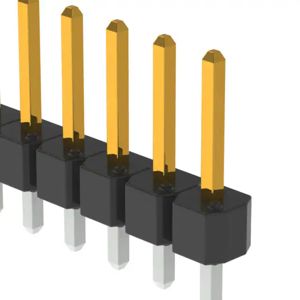

Amphenol ICC (FCI)
68000-124HLF

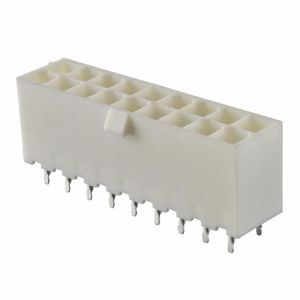

Würth Elektronik
