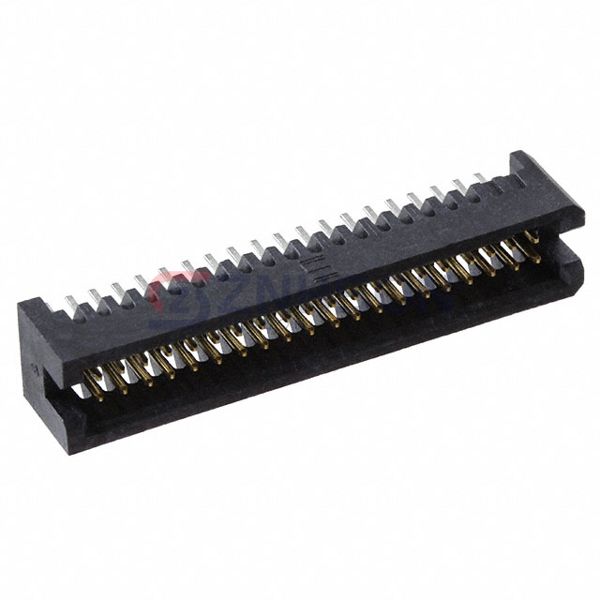

TFM-120-01-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 40POS 1.27MM
$9.93
Available to order
Reference Price (USD)
1+
$6.18000
20+
$5.92800
100+
$4.94000
500+
$4.19900
1,000+
$3.58150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TFM-120-01-L-D by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the TFM-120-01-L-D supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.131" (3.33mm)
- Contact Length - Post: 0.078" (1.98mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
Related Products
Molex
0713085450
TE Connectivity AMP Connectors
1-5499141-2
Harwin Inc.
M80-6652022
Samtec Inc.
BBS-127-G-A
CW Industries
CWN-320-26-0000
Samtec Inc.
ZSS-113-01-G-D-505
Sullins Connector Solutions
PBC11SACN
TE Connectivity AMP Connectors

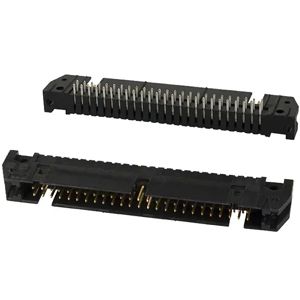

1-102162-0
