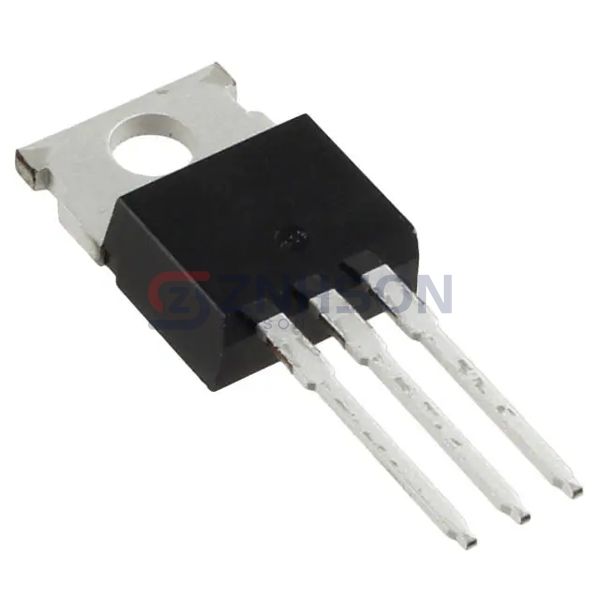

TK56E12N1,S1X
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N CH 120V 56A TO-220
$1.52
Available to order
Reference Price (USD)
50+
$1.38320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TK56E12N1,S1X by Toshiba Semiconductor and Storage, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The TK56E12N1,S1X stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Toshiba Semiconductor and Storage.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 120 V
- Current - Continuous Drain (Id) @ 25°C: 56A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7mOhm @ 28A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 69 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4200 pF @ 60 V
- FET Feature: -
- Power Dissipation (Max): 168W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
