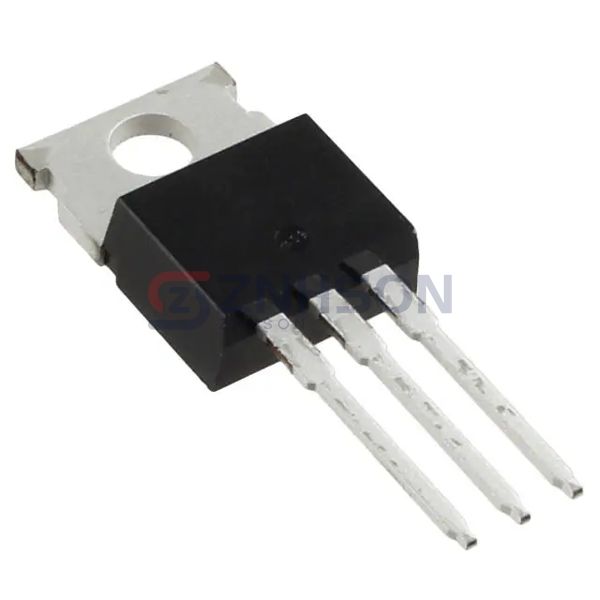

TK5R3E08QM,S1X
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
UMOS10 TO-220AB 80V 5.3MOHM
$1.67
Available to order
Reference Price (USD)
1+
$1.67000
500+
$1.6533
1000+
$1.6366
1500+
$1.6199
2000+
$1.6032
2500+
$1.5865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TK5R3E08QM,S1X single MOSFET from Toshiba Semiconductor and Storage is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TK5R3E08QM,S1X is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 5.3mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 700µA
- Gate Charge (Qg) (Max) @ Vgs: 55 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3980 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 150W (Tc)
- Operating Temperature: 175°C
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
Related Products
Infineon Technologies
IPD65R660CFDATMA1
Texas Instruments
CSD18532Q5BT
onsemi
FDS5670
Microchip Technology

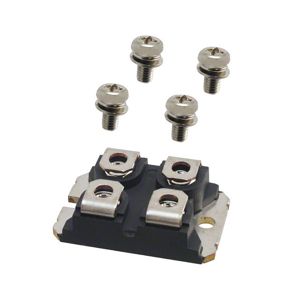

APT17F120J
IXYS

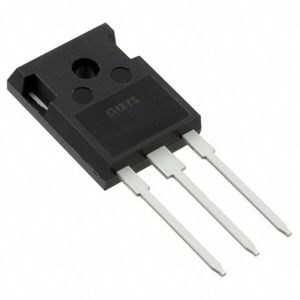

IXFH56N30X3
Diodes Incorporated

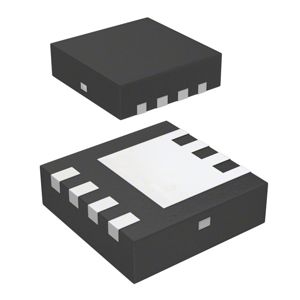

DMG4800LFG-7
STMicroelectronics

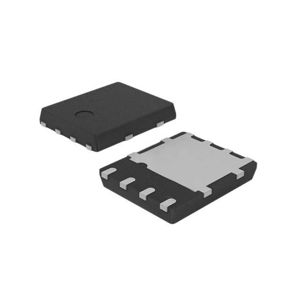

STL40N10F7
onsemi
NTMFS4C13NT1G
Alpha & Omega Semiconductor Inc.

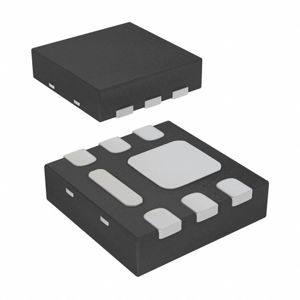

AON2290
