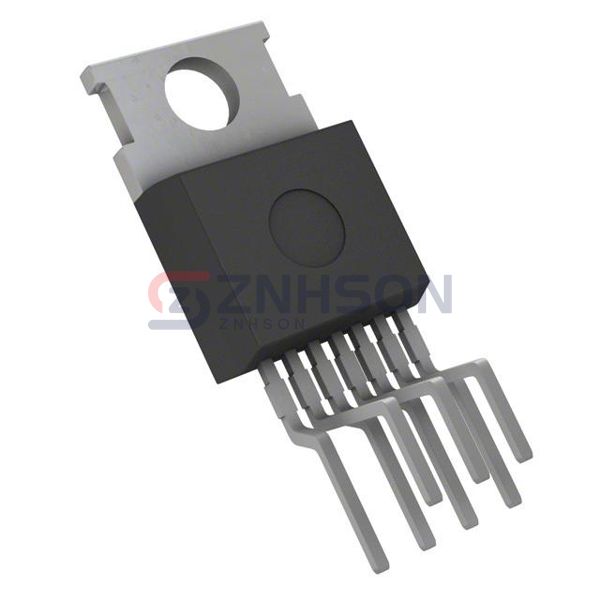

TLE42712AKSA1

Infineon Technologies

Manufacturer

Infineon Technologies

Description:

IC REG LIN 5V 550MA TO220-7-11

Datasheet:

TLE42712AKSA1 Datasheet

$1.35

Available to order

Reference Price (USD)

$1.35000

500+

$1.3365

1000+

$1.323

1500+

$1.3095

2000+

$1.296

2500+

$1.2825

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Infineon Technologies's TLE42712AKSA1 represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the TLE42712AKSA1 are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.7V @ 550mA
Current - Output: 550mA
Current - Quiescent (Iq): 6 µA
Current - Supply (Max): 90 mA
PSRR: 54dB (100Hz)
Control Features: Reset, Watchdog
Protection Features: Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-220-7 Formed Leads
Supplier Device Package: P-TO220-7-11
