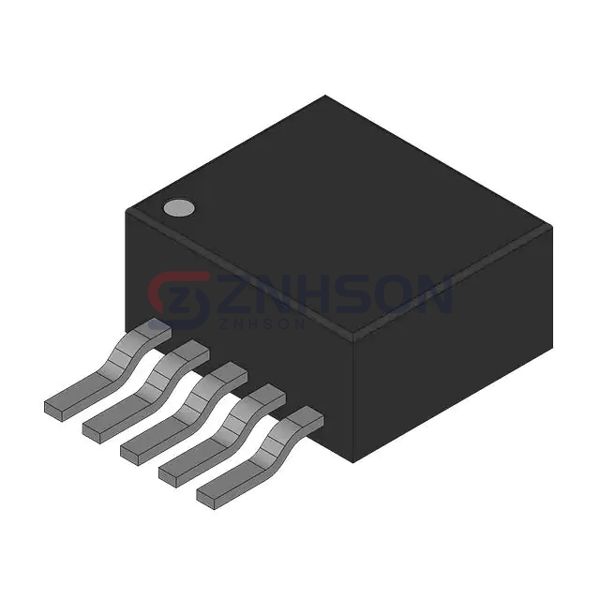

TLE4290G

Infineon Technologies

Manufacturer

Infineon Technologies

Description:

IC REG LINEAR FIXED LDO REG

Datasheet:

TLE4290G Datasheet

$1.28

Available to order

Reference Price (USD)

$1.28000

500+

$1.2672

1000+

$1.2544

1500+

$1.2416

2000+

$1.2288

2500+

$1.216

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TLE4290G from Infineon Technologies is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 42V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.5V @ 300mA
Current - Output: 450mA
Current - Quiescent (Iq): 230 µA
Current - Supply (Max): 25 mA
PSRR: 60dB (100Hz)
Control Features: Delay, Power Good
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package: PG-TO263-5-1
