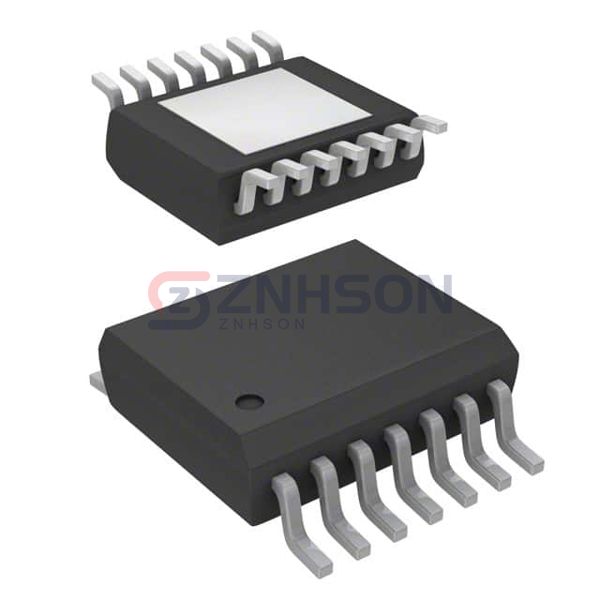

TLF42772ELXUMA2

Infineon Technologies

Manufacturer

Infineon Technologies

Description:

IC REG LIN POS ADJ 300MA SSOP-14

Datasheet:

TLF42772ELXUMA2 Datasheet

$2.05

Available to order

Reference Price (USD)

2,500+

$0.93285

5,000+

$0.89830

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Infineon Technologies's TLF42772ELXUMA2 represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the TLF42772ELXUMA2 are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): 12V
Voltage Dropout (Max): 0.5V @ 200mA
Current - Output: 300mA
Current - Quiescent (Iq): 200 µA
Current - Supply (Max): 11 mA
PSRR: 65dB (100Hz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 14-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package: PG-SSOP-14-EP
