TLV7032DSGR
Texas Instruments
Texas Instruments
DUAL NANOPOWER, SMALL SIZE COMPA
$1.27
Available to order
Reference Price (USD)
1+
$1.27000
500+
$1.2573
1000+
$1.2446
1500+
$1.2319
2000+
$1.2192
2500+
$1.2065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's TLV7032DSGR represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the TLV7032DSGR's implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Active
- Type: General Purpose
- Number of Elements: 2
- Output Type: Push-Pull, Rail-to-Rail
- Voltage - Supply, Single/Dual (±): 1.6V ~ 6.5V
- Voltage - Input Offset (Max): 8mV @ 5V
- Current - Input Bias (Max): 2pA @ 5V
- Current - Output (Typ): 29mA @ 5V
- Current - Quiescent (Max): 750nA
- CMRR, PSRR (Typ): 73dB CMRR, 77dB PSRR
- Propagation Delay (Max): 3µs (Typ)
- Hysteresis: 25mV
- Operating Temperature: -40°C ~ 125°C

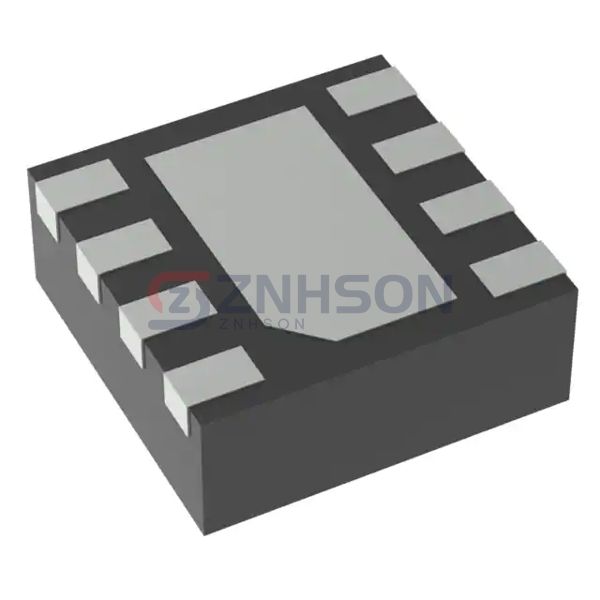

- Package / Case: 8-WFDFN Exposed Pad
- Mounting Type: Surface Mount
- Supplier Device Package: 8-WSON (2x2)
