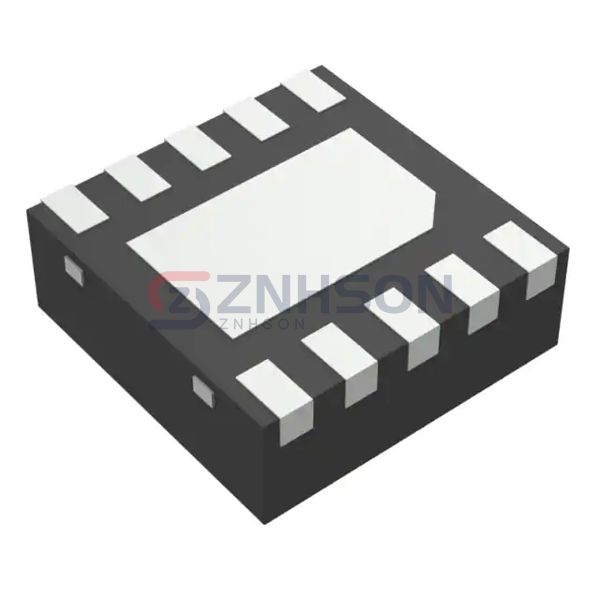

TLV75101PDSQT

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN POS ADJ 500MA 10WSON

Datasheet:

TLV75101PDSQT Datasheet

$1.18

Available to order

Reference Price (USD)

$1.18000

500+

$1.1682

1000+

$1.1564

1500+

$1.1446

2000+

$1.1328

2500+

$1.121

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TLV75101PDSQT linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TLV75101PDSQT model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 2
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 0.55V
Voltage - Output (Max): 5.5V
Voltage Dropout (Max): 0.88V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 35 µA
Current - Supply (Max): -
PSRR: 50dB ~ 30dB (1kHz ~ 1MHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 10-WFDFN Exposed Pad
Supplier Device Package: 10-WSON (2x2)
