TLV76618QWDRBRQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

AUTOMOTIVE, ADJUSTABLE- AND FIXE

Datasheet:

TLV76618QWDRBRQ1 Datasheet

$1.10

Available to order

Reference Price (USD)

$1.10000

500+

$1.089

1000+

$1.078

1500+

$1.067

2000+

$1.056

2500+

$1.045

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TLV76618QWDRBRQ1 linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TLV76618QWDRBRQ1 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 16V
Voltage - Output (Min/Fixed): 1.8V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.75V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 95 µA
Current - Supply (Max): -
PSRR: 70dB (120Hz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount, Wettable Flank

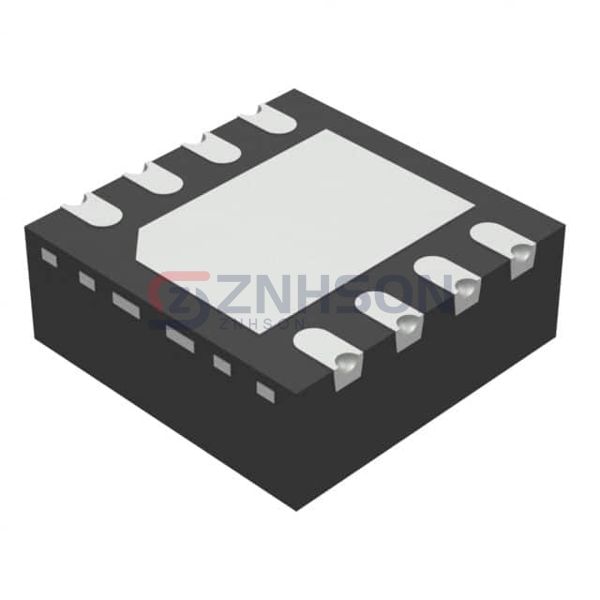

Package / Case: 8-VDFN Exposed Pad
Supplier Device Package: 8-SON (3x3)
