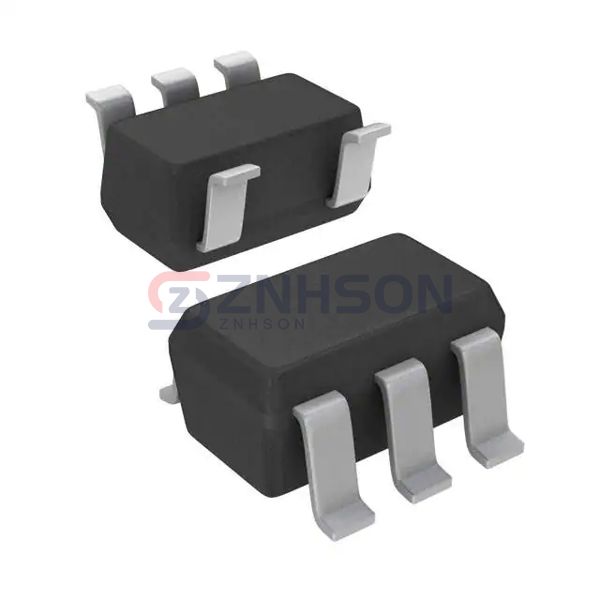

TLV76780DBVR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN 1A SOT23-5

Datasheet:

TLV76780DBVR Datasheet

$1.01

Available to order

Reference Price (USD)

$1.01000

500+

$0.9999

1000+

$0.9898

1500+

$0.9797

2000+

$0.9696

2500+

$0.9595

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TLV76780DBVR from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 16V
Voltage - Output (Min/Fixed): 8V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.8V @ 800mA
Current - Output: 1A
Current - Quiescent (Iq): 95 µA
Current - Supply (Max): -
PSRR: 70dB (120Hz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
Supplier Device Package: SOT-23-5
