TLW-108-05-G-S
Samtec Inc.
Samtec Inc.

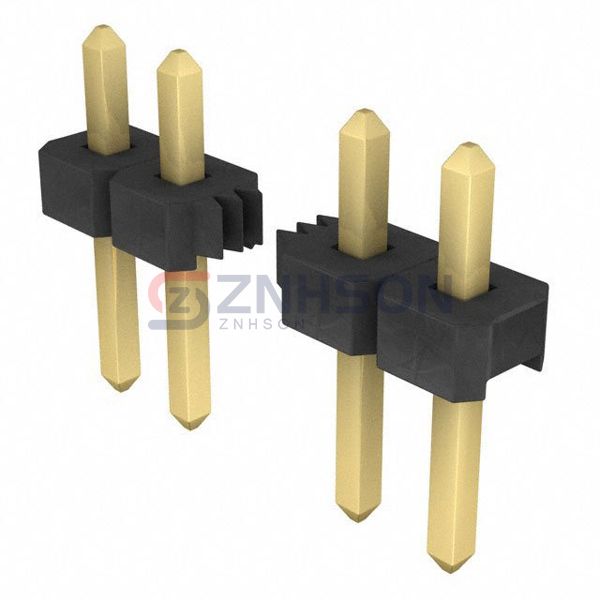

CONN HEADER VERT 8POS 2.54MM
$1.90
Available to order
Reference Price (USD)
1+
$1.76000
10+
$1.59300
25+
$1.49600
50+
$1.43080
100+
$1.36580
250+
$1.23576
500+
$1.13820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TLW-108-05-G-S from Samtec Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the TLW-108-05-G-S offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Samtec Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.170" (4.32mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.060" (1.52mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: -
