TLW-119-05-T-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 38POS 2.54MM
$3.85
Available to order
Reference Price (USD)
1+
$3.56000
10+
$3.42000
25+
$3.13520
50+
$2.99260
100+
$2.85000
250+
$2.49376
500+
$2.42250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TLW-119-05-T-D rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the TLW-119-05-T-D ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 38
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.170" (4.32mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.060" (1.52mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: -
Related Products
Molex
0436500711
Samtec Inc.

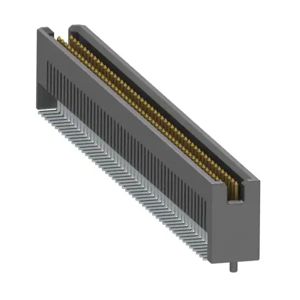

TFM-150-22-L-D-A
Harwin Inc.

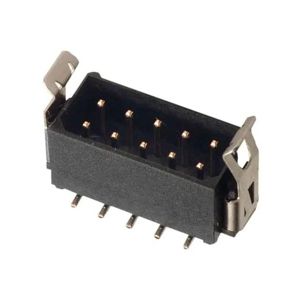

M80-8280822P
TE Connectivity AMP Connectors

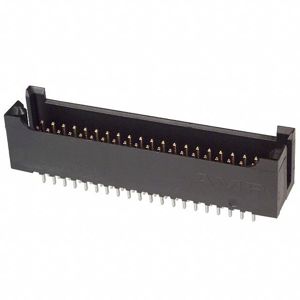

6-102567-2
Samtec Inc.

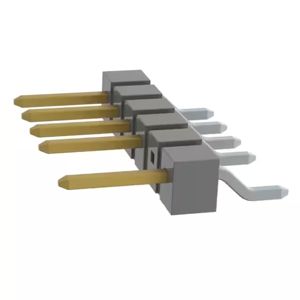

TSM-106-01-L-SH-002
Hirose Electric Co Ltd

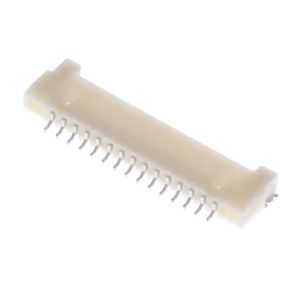

DF14A-15P-1.25H(52)
Samtec Inc.

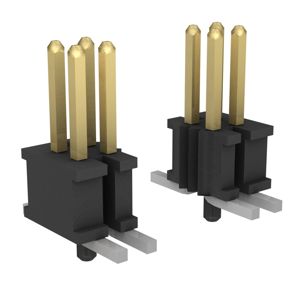

FTSH-117-01-F-DV-A
Samtec Inc.

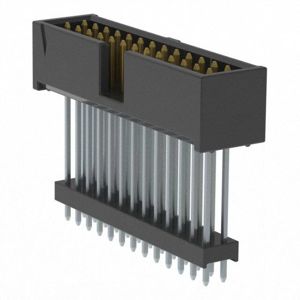

ZSS-113-05-L-D-930
JST Sales America Inc.

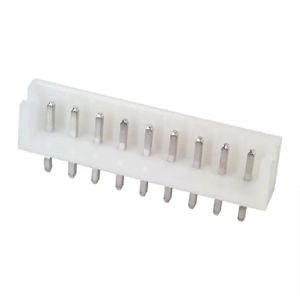

B9B-EH-A(LF)(SN)
