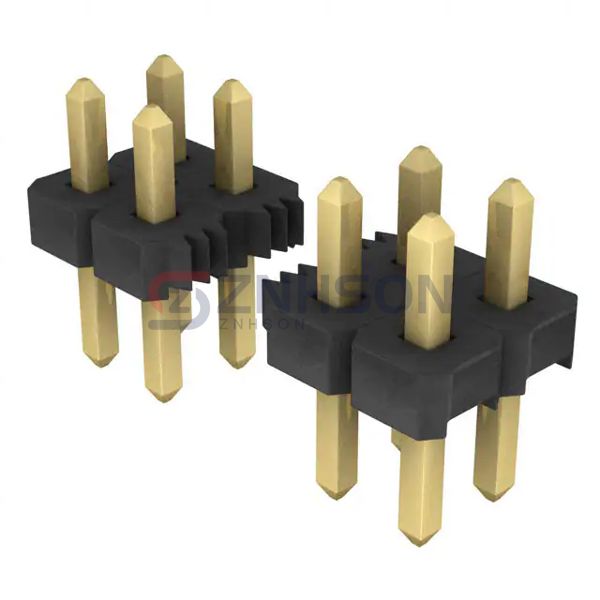

TLW-129-06-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 58POS 2.54MM
$9.98
Available to order
Reference Price (USD)
1+
$9.25000
10+
$8.84700
25+
$8.04280
50+
$7.64060
100+
$7.43950
250+
$6.63520
500+
$6.23306
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TLW-129-06-G-D by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 58
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.060" (1.52mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-118-06-G-S
Samtec Inc.
FTSH-104-01-F-DH-C-TR
Samtec Inc.
TSW-105-06-T-S
Preci-Dip
800-80-027-40-001101
Samtec Inc.
HTSW-105-07-F-S
Samtec Inc.
TSM-105-02-S-DV-006-P
Samtec Inc.
EHT-115-01-F-D-SM-LC
Samtec Inc.

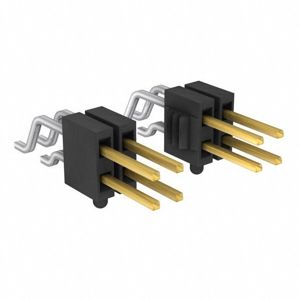

FTSH-127-02-L-DH-A
