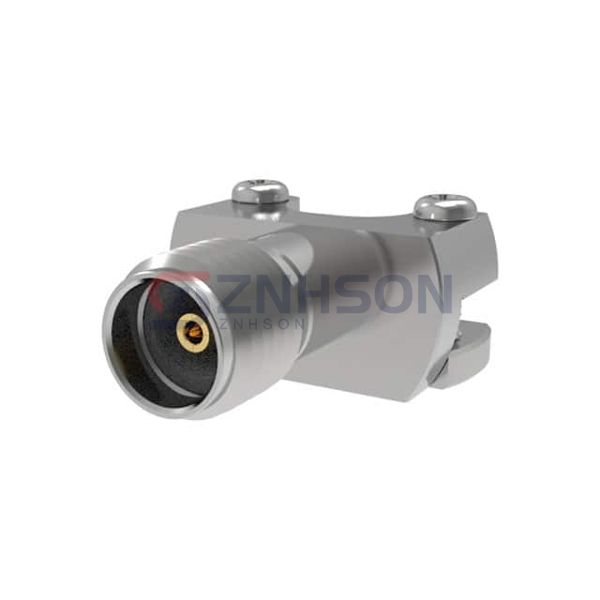

TMB-E5F2-1L1
CarlisleIT
CarlisleIT
3.5(F)2-H,EL,FIELDREP
$38.93
Available to order
Reference Price (USD)
1+
$38.93000
500+
$38.5407
1000+
$38.1514
1500+
$37.7621
2000+
$37.3728
2500+
$36.9835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
CarlisleIT's TMB-E5F2-1L1 RF coaxial connectors deliver unmatched reliability in our Coaxial Connectors (RF) category. These components feature patented dielectric interface technology that maintains signal integrity up to millimeter-wave frequencies. The product range includes both standard and reverse-polarity configurations with various gender options. Constructed with military-grade materials, they exceed MIL-STD-348 compliance requirements. Application highlights: 5G massive MIMO antennas Electronic test and calibration standards Marine navigation radars Medical linear accelerators. The TMB-E5F2-1L1 series incorporates unique visual mating indicators and color-coding options for error-proof installations in complex RF subsystems.
Specifications
- Product Status: Active
- Connector Style: 3.5mm
- Connector Type: Jack, Female Socket
- Contact Termination: Compression
- Shield Termination: Screw
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 34 GHz
- Number of Ports: 1
- Features: Field Replaceable, For Hermetically Sealed Pin
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
