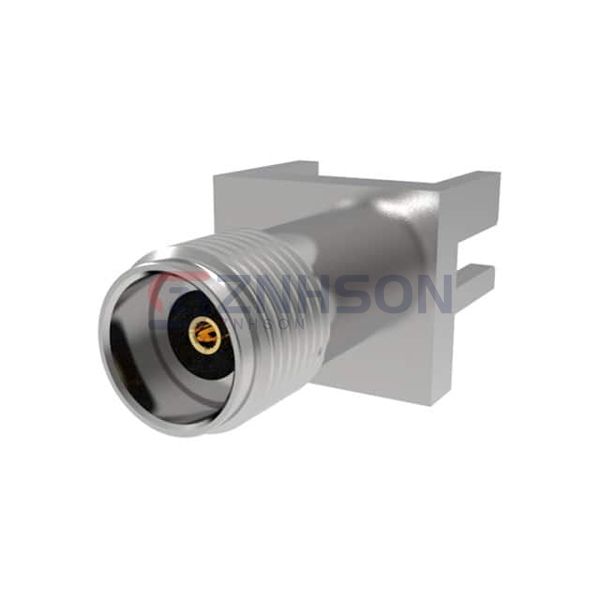

TMB-E9FS-1S1
CarlisleIT
CarlisleIT
2.92(F)STR,EL,SOLDER
$36.19
Available to order
Reference Price (USD)
1+
$36.19000
500+
$35.8281
1000+
$35.4662
1500+
$35.1043
2000+
$34.7424
2500+
$34.3805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMB-E9FS-1S1 from CarlisleIT represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The TMB-E9FS-1S1 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: 2.92mm
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 40 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
Rosenberger
56K405-500N5
Hirose Electric Co Ltd
HRM-100-4S-A(40)
Mueller Electric Co
BU-P5219
Mitsumi Electric Company Ltd
R41-B253K
Hirose Electric Co Ltd
BNC-LR(40)
Amphenol Times Microwave Systems
EZ-240-TM-RP-PL-X
Radiall USA, Inc.
R125451000
Hirose Electric Co Ltd
MS-147(01)
RF Industries

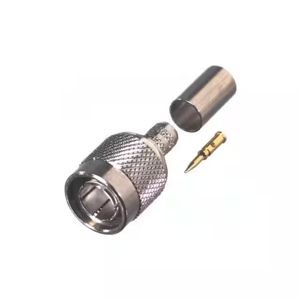

RFT-1803-R
