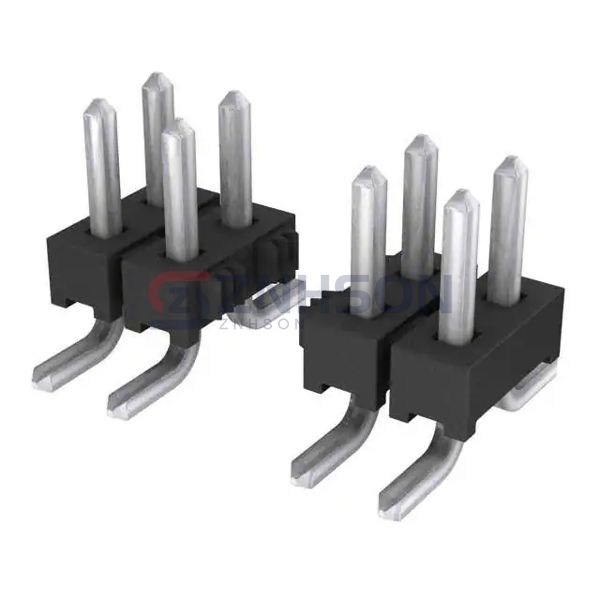

TMM-127-01-T-D-SM
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 54POS 2MM
$4.29
Available to order
Reference Price (USD)
1+
$4.29000
10+
$4.12100
25+
$3.77800
50+
$3.60620
100+
$3.43440
250+
$3.00512
500+
$2.91924
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the TMM-127-01-T-D-SM rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the TMM-127-01-T-D-SM meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 54
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.2A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-107-03-F-D
Samtec Inc.
ZSS-107-01-S-D-490
Adam Tech
BHR-08-HUA
Preci-Dip
800-80-061-65-001101
Samtec Inc.
TSM-120-01-L-DH-P-TR
Samtec Inc.
FTSH-111-02-F-DV-A
Preci-Dip
350-10-107-00-006101
Samtec Inc.

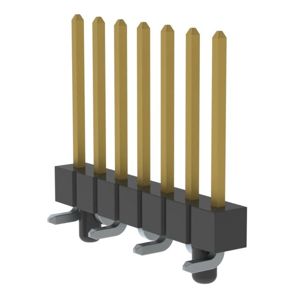

TSM-107-03-S-SV-A-P
Samtec Inc.

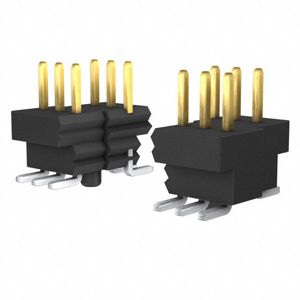

BKT-125-03-L-V-A-TR
