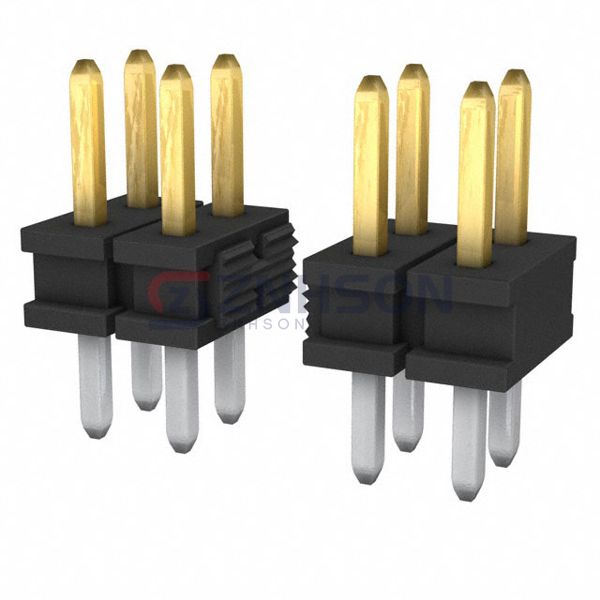

TMMH-110-01-F-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 20POS 2MM
$2.97
Available to order
Reference Price (USD)
1+
$1.82000
10+
$1.65400
100+
$1.41750
500+
$1.18126
1,000+
$1.01250
5,000+
$0.89775
10,000+
$0.87750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TMMH-110-01-F-D rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the TMMH-110-01-F-D ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.097" (2.47mm)
- Overall Contact Length: 0.302" (7.67mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
399-V3-109-10-009101
Samtec Inc.
TSM-108-01-S-DV-014-TR
Samtec Inc.
HTSW-101-41-G-S
Molex
0878580750
Molex
1053102214
Samtec Inc.
TSW-117-26-S-D
Molex

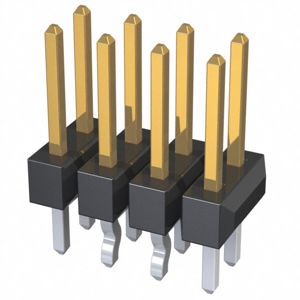

0702871198
Amphenol ICC (FCI)

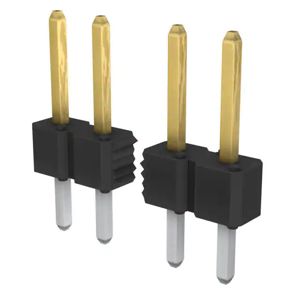

77311-102-15LF
