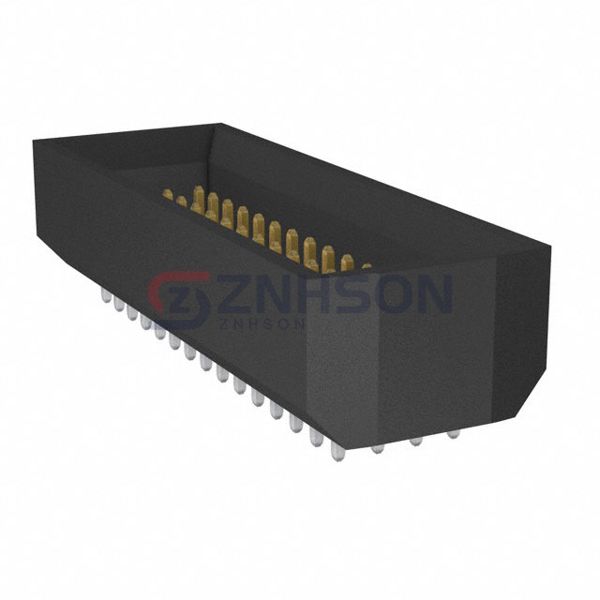

TMMS-115-01-S-Q-FS
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 60POS 2MM
$17.20
Available to order
Reference Price (USD)
15+
$10.80000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMMS-115-01-S-Q-FS male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 60
- Number of Rows: 4
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.130" (3.30mm)
- Contact Length - Post: 0.113" (2.87mm)
- Overall Contact Length: 0.302" (7.67mm)
- Insulation Height: 0.299" (7.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-124-02-L-D-P
Mill-Max Manufacturing Corp.
850-90-021-20-001000
Samtec Inc.
TSM-108-02-F-DV-P-TR
Samtec Inc.
TMM-111-06-G-D-SM-P-TR
Molex
0015800063
TE Connectivity AMP Connectors
4-103747-0-07
Samtec Inc.

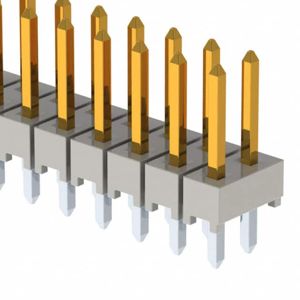

HTSW-111-07-F-D
