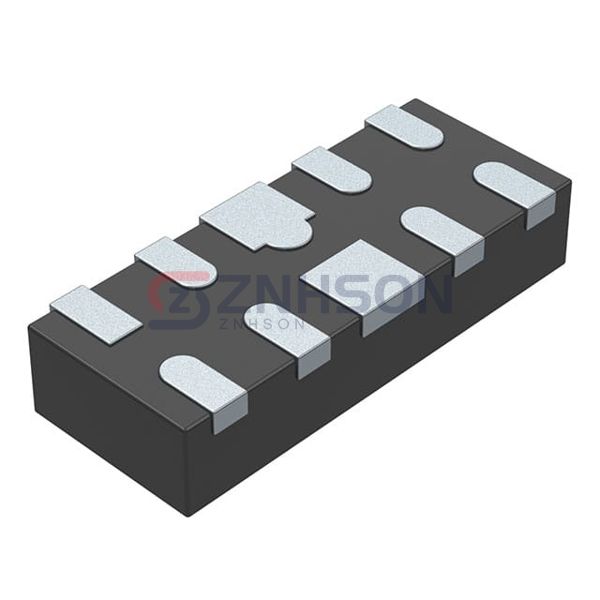

TMUX1204DQAR
Texas Instruments
Texas Instruments
IC SWITCH
$0.91
Available to order
Reference Price (USD)
1+
$0.91000
500+
$0.9009
1000+
$0.8918
1500+
$0.8827
2000+
$0.8736
2500+
$0.8645
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMUX1204DQAR represents Texas Instruments's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 1
- On-State Resistance (Max): 5Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 1.08V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 14ns, 5ns (Typ)
- -3db Bandwidth: 125MHz
- Charge Injection: 9pC
- Channel Capacitance (CS(off), CD(off)): 13pF, 38pF
- Current - Leakage (IS(off)) (Max): 75nA (Typ)
- Crosstalk: -42dB @ 10MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: -
- Package / Case: 10-UFDFN
- Supplier Device Package: 10-USON (2.5x1)
Related Products
Vishay Siliconix
DG4053EEN-T1-GE4
Analog Devices Inc./Maxim Integrated
MAX4526EUA+T
Texas Instruments
SN74HC4851DGVR
Renesas Electronics America Inc
DG442DYZ
Toshiba Semiconductor and Storage
74HCT4051D
Analog Devices Inc./Maxim Integrated

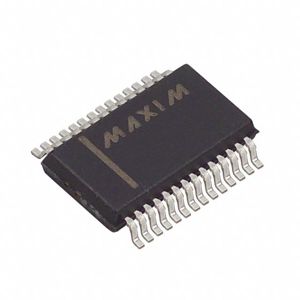

MAX337CAI+T
