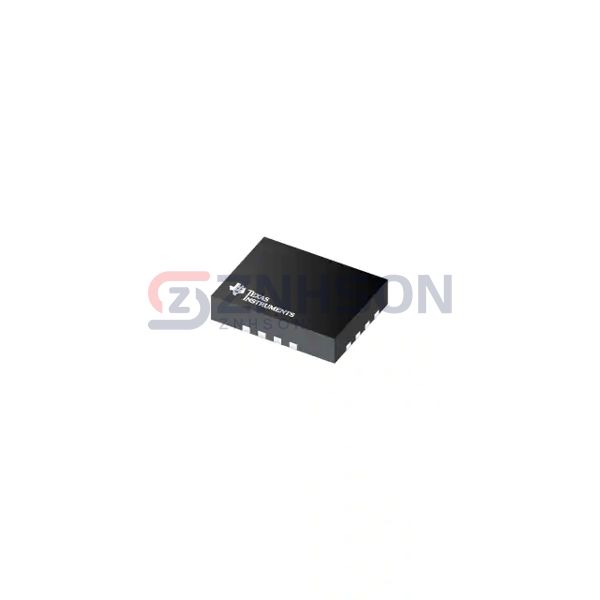

TMUX1208RSVR
Texas Instruments
Texas Instruments
IC SWITCH SINGLE 16UQFN
$0.96
Available to order
Reference Price (USD)
3,000+
$0.45360
6,000+
$0.43092
15,000+
$0.41472
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TMUX1208RSVR - Texas Instruments's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The TMUX1208RSVR enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 5Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 1.08V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 14ns, 5ns (Typ)
- -3db Bandwidth: 65MHz
- Charge Injection: 9pC
- Channel Capacitance (CS(off), CD(off)): 13pF, 76pF
- Current - Leakage (IS(off)) (Max): 75nA (Typ)
- Crosstalk: -62dB ~ -42dB @ 1MHz ~ 10MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-UFQFN
- Supplier Device Package: 16-UQFN (2.6x1.8)
