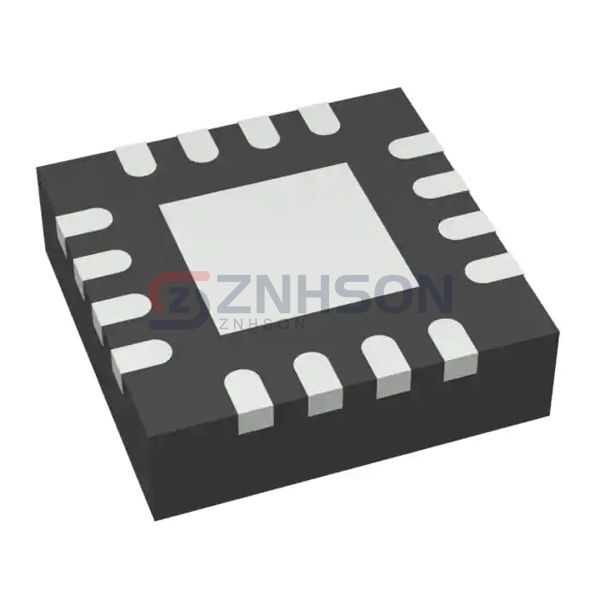

TMUX6111RTER
Texas Instruments
Texas Instruments
IC SWITCH SPST QUAD 16WQFN
$4.44
Available to order
Reference Price (USD)
3,000+
$2.32750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TMUX6111RTER - Texas Instruments's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The TMUX6111RTER enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPST
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 160Ohm
- Channel-to-Channel Matching (ΔRon): 2.5Ohm
- Voltage - Supply, Single (V+): 10V ~ 16.5V
- Voltage - Supply, Dual (V±): ±5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 78ns, 68ns
- -3db Bandwidth: 800MHz
- Charge Injection: 0.6pC
- Channel Capacitance (CS(off), CD(off)): 2.5pF, 2.4pF
- Current - Leakage (IS(off)) (Max): 20pA
- Crosstalk: -100dB ~ -115dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad
- Supplier Device Package: 16-WQFN (3x3)
