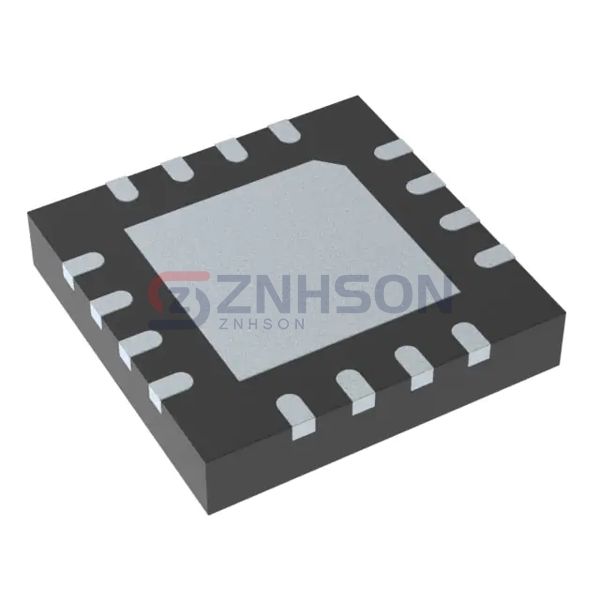

TMUX6209RUMR
Texas Instruments
Texas Instruments
IC MULTIPLEXER
$3.96
Available to order
Reference Price (USD)
1+
$3.95680
500+
$3.917232
1000+
$3.877664
1500+
$3.838096
2000+
$3.798528
2500+
$3.75896
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TMUX6209RUMR - Texas Instruments's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The TMUX6209RUMR enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: 4PST
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 6.2Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 4.5V ~ 36V, ±4.5V ~ 18V
- Voltage - Supply, Dual (V±): 4.5V ~ 36V, ±4.5V ~ 18V
- Switch Time (Ton, Toff) (Max): 200ns, 290ns
- -3db Bandwidth: 50MHz
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 15pF, 68pF
- Current - Leakage (IS(off)) (Max): 400pA
- Crosstalk: -65dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad
- Supplier Device Package: 16-WQFN (4x4)
Related Products
Nexperia USA Inc.
74LVC1G3157GV-Q10H
Analog Devices Inc.
LTC1390CN#PBF
Analog Devices Inc./Maxim Integrated
DG409DY+
Texas Instruments
5962-9065401MEA
Analog Devices Inc.
ADG1613BRUZ-REEL
Analog Devices Inc./Maxim Integrated
MAX333EPP.C30359
Analog Devices Inc.
ADG795GBCPZ-REEL
Texas Instruments

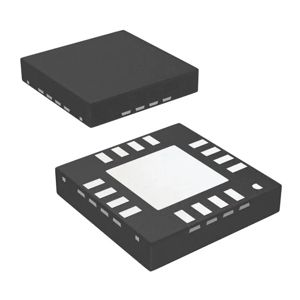

TMUX7308FRRPR
