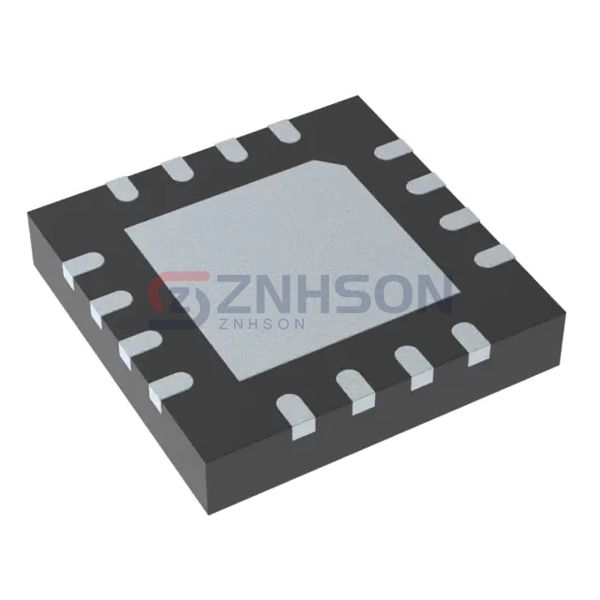

TMUX6212RUMR
Texas Instruments
Texas Instruments
IC MULTIPLEXER
$3.59
Available to order
Reference Price (USD)
1+
$3.58880
500+
$3.552912
1000+
$3.517024
1500+
$3.481136
2000+
$3.445248
2500+
$3.40936
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMUX6212RUMR represents Texas Instruments's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 3.1Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 4.5V ~ 36V, ±4.5V ~ 18V
- Voltage - Supply, Dual (V±): 4.5V ~ 36V, ±4.5V ~ 18V
- Switch Time (Ton, Toff) (Max): 180ns, 200ns
- -3db Bandwidth: 50MHz
- Charge Injection: 78pC
- Channel Capacitance (CS(off), CD(off)): 28pF, 45pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -93dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad
- Supplier Device Package: 16-WQFN (4x4)
Related Products
Analog Devices Inc./Maxim Integrated
MAX4691ETE+T
onsemi
MC74HC4053AD
Analog Devices Inc.
ADG711BRUZ-REEL7
Analog Devices Inc.
AD8186ARU
Analog Devices Inc.
AD8186ARUZ
Analog Devices Inc.

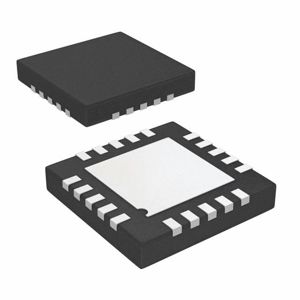

ADG1438BCPZ-REEL7
