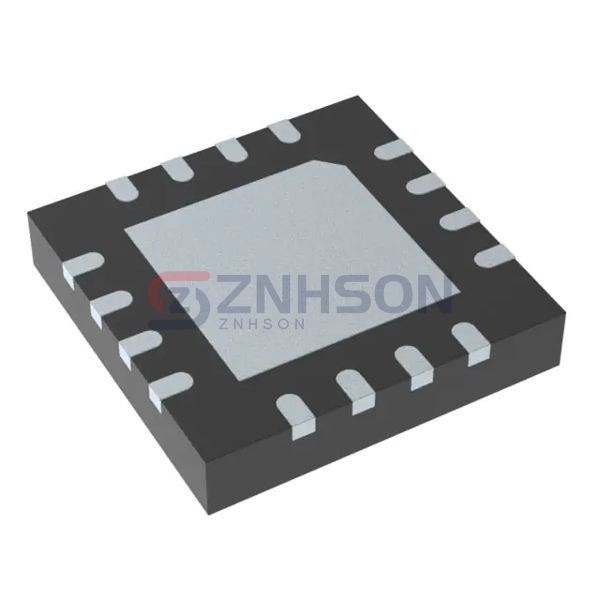

TMUX7213RUMR
Texas Instruments
Texas Instruments
IC MULTIPLEXER
$3.79
Available to order
Reference Price (USD)
1+
$3.78880
500+
$3.750912
1000+
$3.713024
1500+
$3.675136
2000+
$3.637248
2500+
$3.59936
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TMUX7213RUMR - Texas Instruments's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The TMUX7213RUMR enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 2.5Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 4.5V ~ 44V, ±4.5V ~ 22V
- Voltage - Supply, Dual (V±): 4.5V ~ 44V, ±4.5V ~ 22V
- Switch Time (Ton, Toff) (Max): 185ns, 210ns
- -3db Bandwidth: 48MHz
- Charge Injection: 92pC
- Channel Capacitance (CS(off), CD(off)): 28pF, 45pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -93dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad
- Supplier Device Package: 16-WQFN (4x4)
