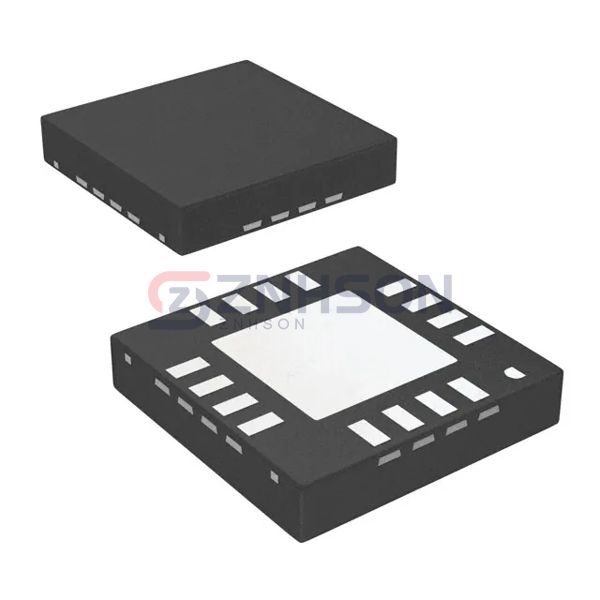

TMUX7309FRRPR
Texas Instruments
Texas Instruments
60-V FAULT-PROTECTED, 4:1, TWO-C
$5.92
Available to order
Reference Price (USD)
1+
$5.92000
500+
$5.8608
1000+
$5.8016
1500+
$5.7424
2000+
$5.6832
2500+
$5.624
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's TMUX7309FRRPR sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The TMUX7309FRRPR is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Active
- Switch Circuit: 4PST
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 250Ohm
- Channel-to-Channel Matching (ΔRon): 2.5Ohm
- Voltage - Supply, Single (V+): 8V ~ 44V, ±5V ~ 22V
- Voltage - Supply, Dual (V±): 8V ~ 44V, ±5V ~ 22V
- Switch Time (Ton, Toff) (Max): 390ns, 450ns
- -3db Bandwidth: 255MHz
- Charge Injection: -16pC
- Channel Capacitance (CS(off), CD(off)): 4pF, 16pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -103dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad
- Supplier Device Package: 16-WQFN (4x4)
