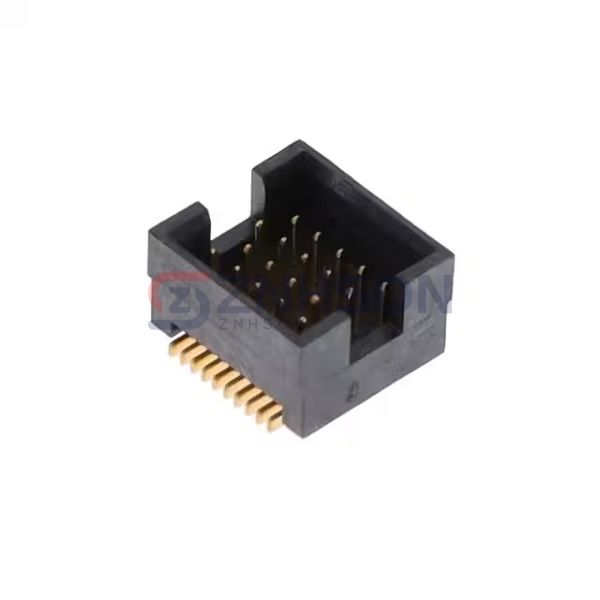

TOLC-105-02-S-Q
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 20POS 1.27MM
$16.72
Available to order
Reference Price (USD)
62+
$9.06306
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the TOLC-105-02-S-Q rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the TOLC-105-02-S-Q is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 4
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.100" (2.54mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.4A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
HTSW-118-08-L-D-RA
Samtec Inc.
TSM-106-01-L-SV-P
Preci-Dip
350-10-137-01-666101
Molex
5600200520
Samtec Inc.
TSM-134-04-L-SV
Harwin Inc.
M20-8760342R
Samtec Inc.

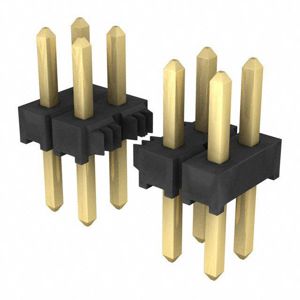

TMM-122-04-G-D
Samtec Inc.

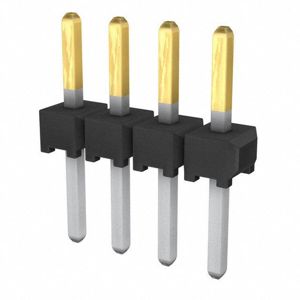

TMM-104-03-LM-S
Molex

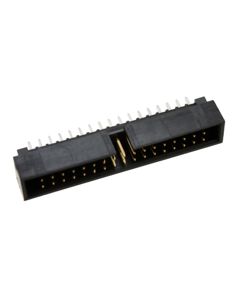

0702463401
