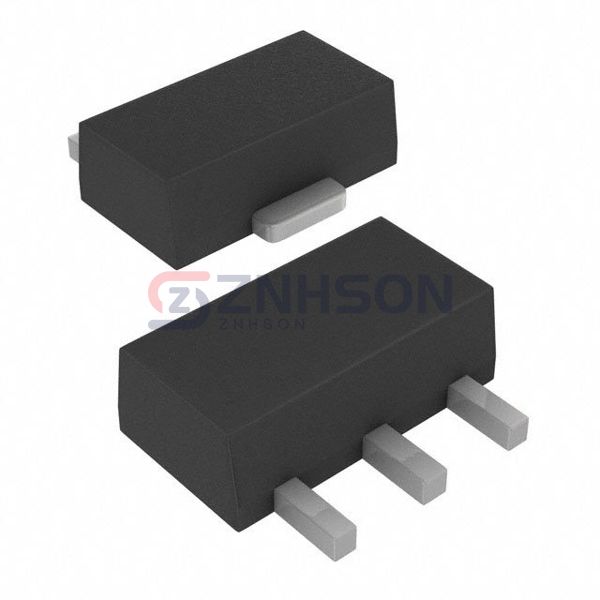

TP2522N8-G
Microchip Technology
Microchip Technology
MOSFET P-CH 220V 260MA TO243AA
$1.45
Available to order
Reference Price (USD)
2,000+
$1.00940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TP2522N8-G by Microchip Technology is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the TP2522N8-G is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 220 V
- Current - Continuous Drain (Id) @ 25°C: 260mA (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 12Ohm @ 200mA, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 125 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 1.6W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-243AA (SOT-89)
- Package / Case: TO-243AA
Related Products
onsemi
NTHL040N65S3HF
Microchip Technology
TN2425N8-G
Texas Instruments
CSD16408Q5
Nexperia USA Inc.
PMN230ENEAX
Nexperia USA Inc.
PSMN013-80YS,115
Vishay Siliconix
SIHG28N65EF-GE3
Alpha & Omega Semiconductor Inc.
AOI5N40
Toshiba Semiconductor and Storage
TPH2R408QM,L1Q
Vishay Siliconix

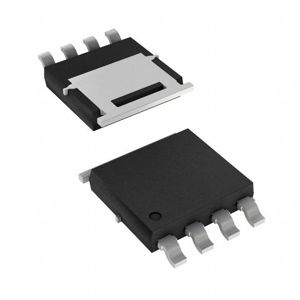

SIJ494DP-T1-GE3
