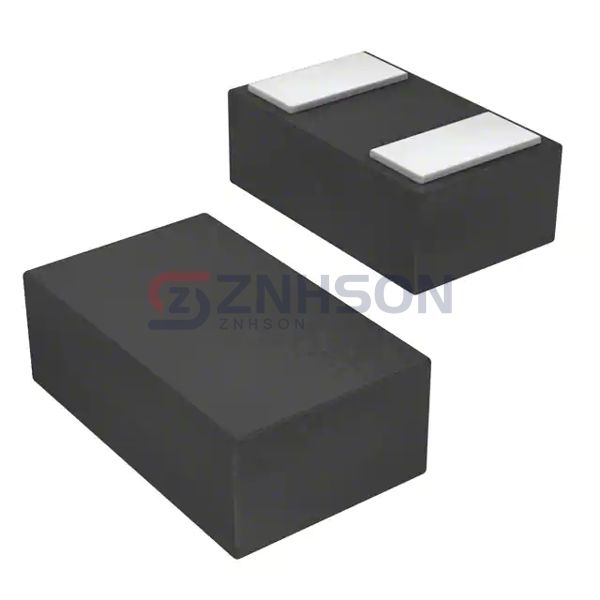

TPD1E04U04DPYR
Texas Instruments
Texas Instruments
TVS DIODE 3.6VWM 8.9VC 2X1SON
$0.42
Available to order
Reference Price (USD)
1+
$0.42000
500+
$0.4158
1000+
$0.4116
1500+
$0.4074
2000+
$0.4032
2500+
$0.399
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPD1E04U04DPYR by Texas Instruments is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the TPD1E04U04DPYR can secure CAN bus lines in vehicles against voltage spikes. Rely on Texas Instruments for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 3.6V (Max)
- Voltage - Breakdown (Min): 4.5V
- Voltage - Clamping (Max) @ Ipp: 8.9V
- Current - Peak Pulse (10/1000µs): 2.5A (8/20µs)
- Power - Peak Pulse: 19W
- Power Line Protection: Yes
- Applications: HDMI
- Capacitance @ Frequency: 0.5pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-X1SON (1x.60)
Related Products
Comchip Technology
TV50C300JB-G
Littelfuse Inc.
TPSMD36CA
YAGEO
5.0SMDJ60CA/TR7
Panjit International Inc.
5KP18CA_R2_00001
Microchip Technology
MSMCG22CAE3
Vishay General Semiconductor - Diodes Division
SMBG28CA-E3/5B
Vishay General Semiconductor - Diodes Division
BZW04-6V4BHE3/73
Vishay General Semiconductor - Diodes Division
SA120AHE3/54
Eaton - Electronics Division

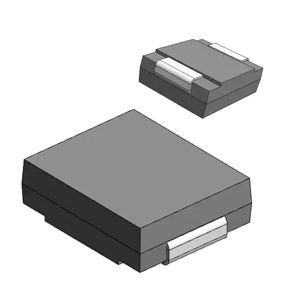

SMDJE45AH
