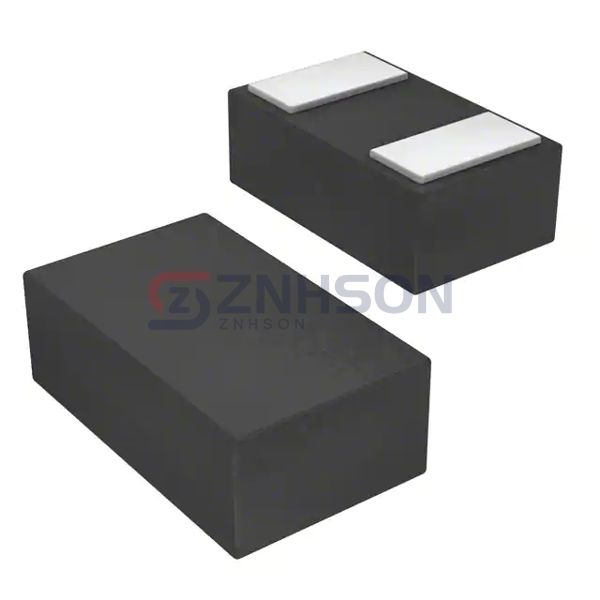

TPD1E05U06DPYT
Texas Instruments
Texas Instruments
TVS DIODE 5.5VWM 14VC 2X1SON
$0.90
Available to order
Reference Price (USD)
1+
$0.90000
500+
$0.891
1000+
$0.882
1500+
$0.873
2000+
$0.864
2500+
$0.855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPD1E05U06DPYT TVS diode by Texas Instruments offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the TPD1E05U06DPYT can safeguard solar inverters from overvoltage events. Choose Texas Instruments for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5.5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 14V
- Current - Peak Pulse (10/1000µs): 2.5A (8/20µs)
- Power - Peak Pulse: 40W
- Power Line Protection: Yes
- Applications: HDMI
- Capacitance @ Frequency: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-X1SON (1x.60)
Related Products
Vishay General Semiconductor - Diodes Division
SA20AHE3/73
Bourns Inc.
CD214B-T18ALF
Littelfuse Inc.
1.5SMB100A
Microchip Technology
MSMCG100CA
Vishay General Semiconductor - Diodes Division
P6SMB43A-M3/52
Vishay General Semiconductor - Diodes Division
SMBJ13CAHE3_A/I
YAGEO

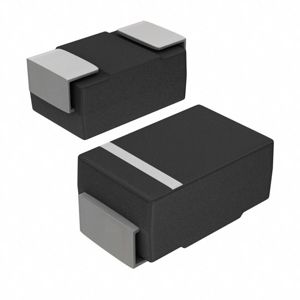

SMAJ54A/TR13
Diotec Semiconductor

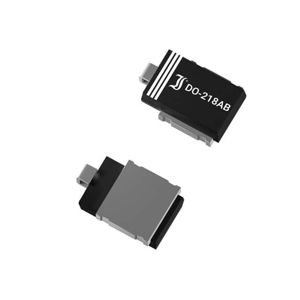

6.6SM8Z36A-AQ
Littelfuse Inc.

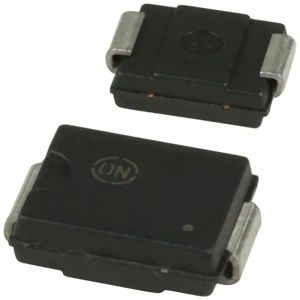

SZ1.5SMC47AT3G
