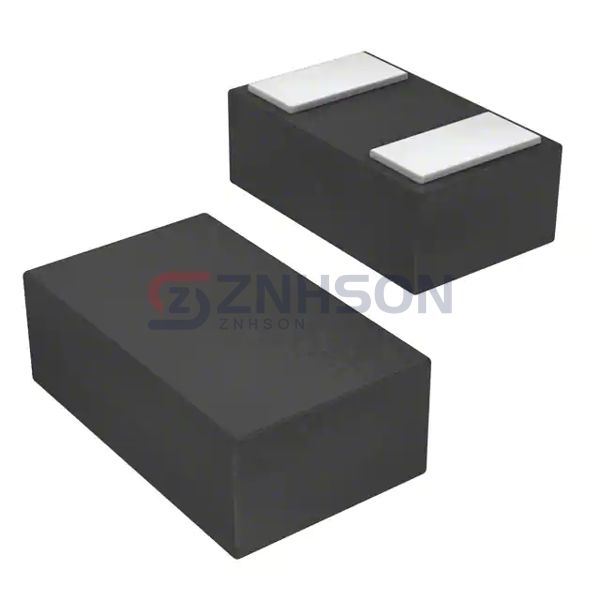

TPD1E05U06QDPYRQ1
Texas Instruments
Texas Instruments
TVS DIODE 5.5VWM 14VC 2X1SON
$0.46
Available to order
Reference Price (USD)
10,000+
$0.08555
30,000+
$0.08020
50,000+
$0.07395
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPD1E05U06QDPYRQ1 TVS diode by Texas Instruments delivers exceptional protection for your electronic circuits. Featuring high surge current handling and low leakage, this diode is ideal for precision applications. TVS diodes are widely used in automotive, industrial, and telecommunications sectors. They are particularly effective in safeguarding sensitive components from voltage transients. For instance, the TPD1E05U06QDPYRQ1 can protect GPS modules in vehicles from ESD events. Texas Instruments provides high-reliability TVS diodes that meet the stringent requirements of modern electronics.
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5.5V (Max)
- Voltage - Breakdown (Min): 6.4V
- Voltage - Clamping (Max) @ Ipp: 14V (Typ)
- Current - Peak Pulse (10/1000µs): 2.5A (8/20µs)
- Power - Peak Pulse: 30W
- Power Line Protection: Yes
- Applications: Automotive, HDMI, USB
- Capacitance @ Frequency: 0.42pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-X1SON (1x.60)
