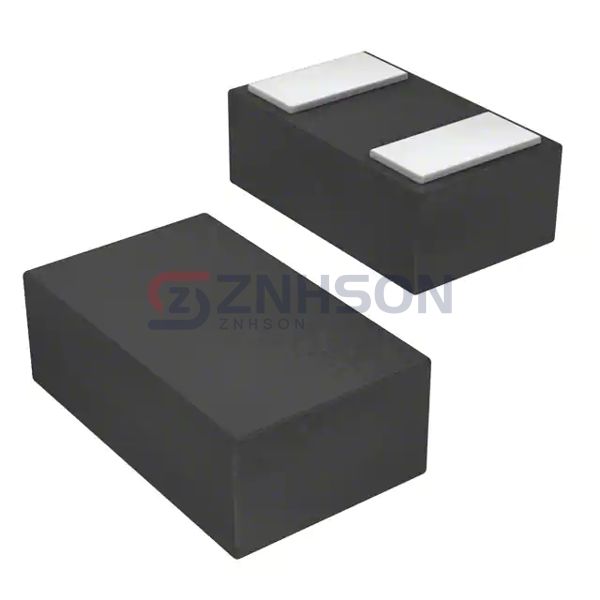

TPD1E0B04DPLR
Texas Instruments
Texas Instruments
TVS DIODE 3.6VWM 10.1VC 2X2SON
$0.44
Available to order
Reference Price (USD)
15,000+
$0.10693
30,000+
$0.09860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the TPD1E0B04DPLR TVS diode by Texas Instruments. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the TPD1E0B04DPLR are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the TPD1E0B04DPLR can shield HDMI ports in consumer electronics from voltage surges. Trust Texas Instruments's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 3.6V (Max)
- Voltage - Breakdown (Min): 6.7V (Typ)
- Voltage - Clamping (Max) @ Ipp: 10.1V
- Current - Peak Pulse (10/1000µs): 1.7A (8/20µA)
- Power - Peak Pulse: 15W
- Power Line Protection: No
- Applications: RF Antenna
- Capacitance @ Frequency: 0.13pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: 2-X2SON (0.6x0.3)
