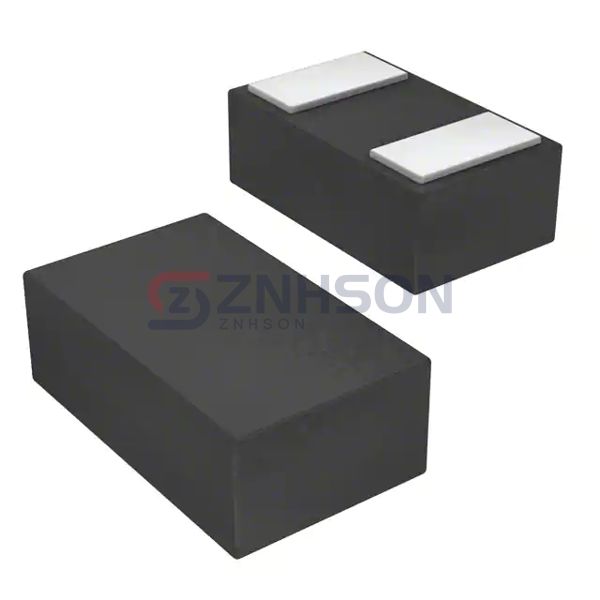

TPD1E1B04DPYR
Texas Instruments
Texas Instruments
TVS DIODE 3.6VWM 8.5VC 2X1SON
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the TPD1E1B04DPYR TVS diode by Texas Instruments. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the TPD1E1B04DPYR are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the TPD1E1B04DPYR can shield HDMI ports in consumer electronics from voltage surges. Trust Texas Instruments's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 3.6V (Max)
- Voltage - Breakdown (Min): 6.4V (Typ)
- Voltage - Clamping (Max) @ Ipp: 8.5V (Typ)
- Current - Peak Pulse (10/1000µs): 6.3A (8/20µs)
- Power - Peak Pulse: 50W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 1pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-X1SON (1x.60)
