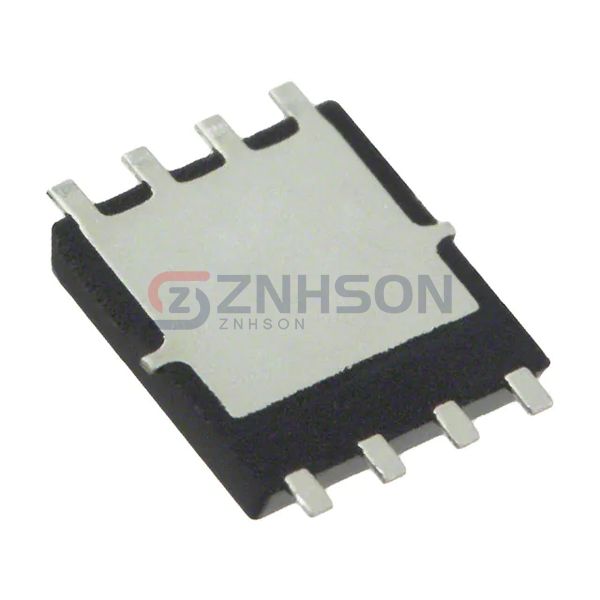

TPH7R506NH,L1Q
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 60V 22A 8SOP
$1.54
Available to order
Reference Price (USD)
5,000+
$0.59500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPH7R506NH,L1Q by Toshiba Semiconductor and Storage is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose Toshiba Semiconductor and Storage for innovation you can depend on.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 4V @ 300µA
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2320 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 1.6W (Ta), 45W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOP Advance (5x5)
- Package / Case: 8-PowerVDFN
