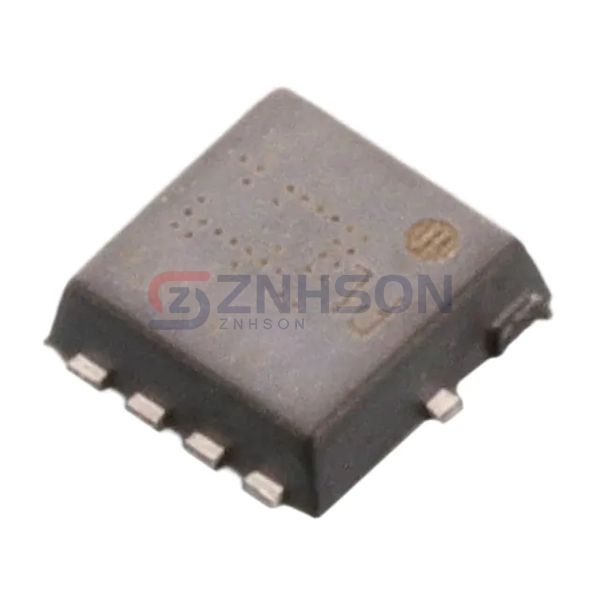

TPN4R806PL,L1Q
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 60V 72A 8TSON
$0.97
Available to order
Reference Price (USD)
1+
$0.97000
500+
$0.9603
1000+
$0.9506
1500+
$0.9409
2000+
$0.9312
2500+
$0.9215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the TPN4R806PL,L1Q by Toshiba Semiconductor and Storage, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the TPN4R806PL,L1Q is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 72A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.5mOhm @ 36A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 300µA
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2770 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 630mW (Ta), 104W (Tc)
- Operating Temperature: 175°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSON Advance (3.1x3.1)
- Package / Case: 8-PowerVDFN
