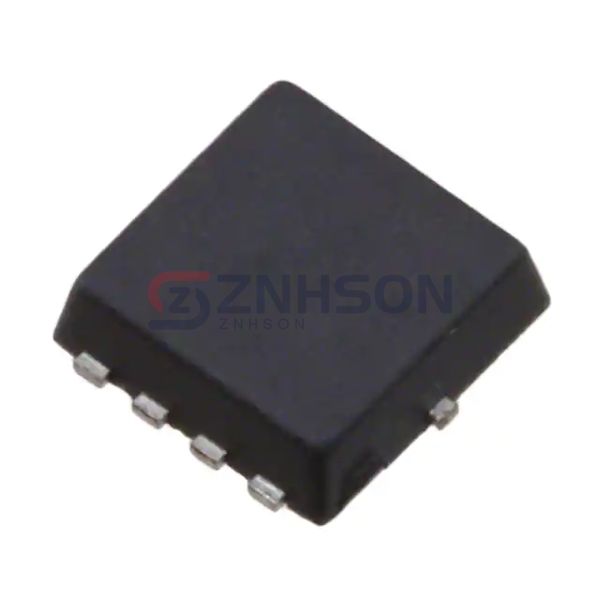

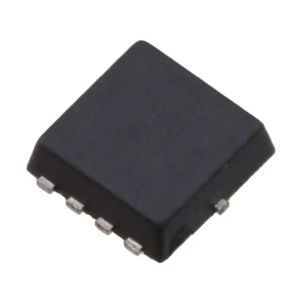

TPN8R903NL,LQ
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 30V 20A 8TSON
$0.70
Available to order
Reference Price (USD)
3,000+
$0.24650
6,000+
$0.23800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the TPN8R903NL,LQ by Toshiba Semiconductor and Storage, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The TPN8R903NL,LQ stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Toshiba Semiconductor and Storage.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8.9mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 9.8 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 820 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 700mW (Ta), 22W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSON Advance (3.1x3.1)
- Package / Case: 8-PowerVDFN
