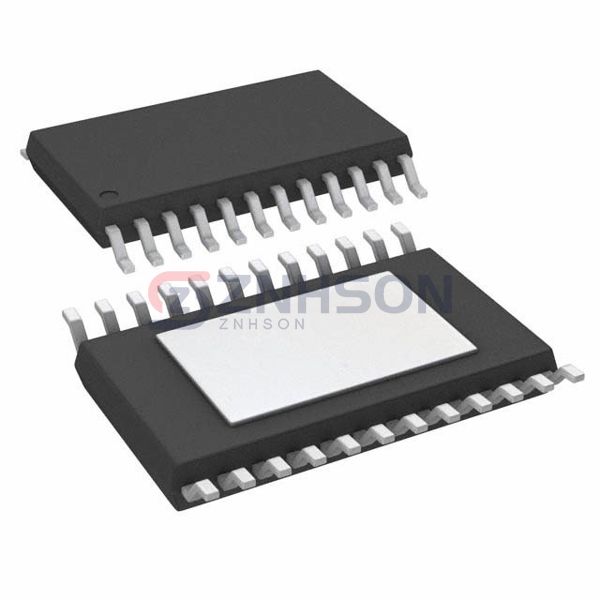

TPS2204APWP
Texas Instruments
Texas Instruments
IC PWR SWITCH 3:4 24HTSSOP
$2.25
Available to order
Reference Price (USD)
1+
$2.25000
500+
$2.2275
1000+
$2.205
1500+
$2.1825
2000+
$2.16
2500+
$2.1375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TPS2204APWP Load Driver IC by Texas Instruments is a versatile solution for modern power distribution challenges. Part of the PMIC family, this IC provides precise load driving capabilities with built-in safeguards like short-circuit and overvoltage protection. From smart home appliances to medical equipment, the TPS2204APWP delivers consistent performance. Its compact design and energy-saving features make it a favorite among engineers. Choose Texas Instruments for ICs that combine power, precision, and protection in one advanced package.
Specifications
- Product Status: Obsolete
- Switch Type: PCMCIA Switch
- Number of Outputs: 4
- Ratio - Input:Output: 3:4
- Output Configuration: High Side
- Output Type: -
- Interface: Serial
- Voltage - Load: 3.3V, 5V, 12V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 1A
- Rds On (Typ): 95mOhm
- Input Type: -
- Features: Status Flag
- Fault Protection: Current Limiting (Fixed), Over Temperature
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 24-HTSSOP
- Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
