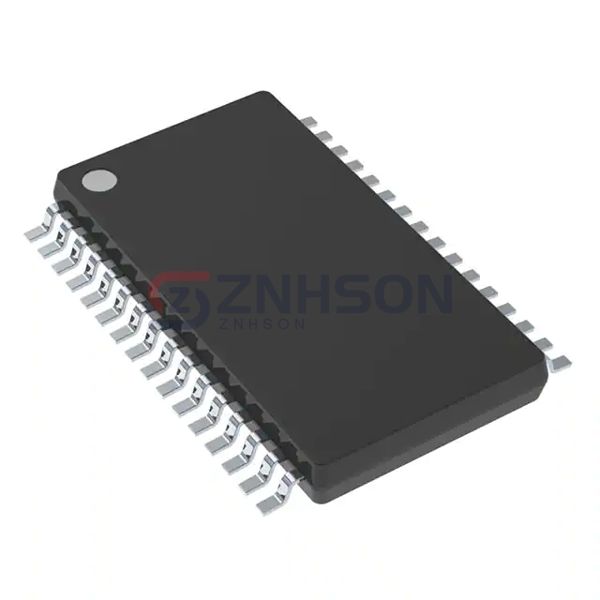

TPS2236DAPR
Texas Instruments
Texas Instruments
IC PWR SWITCH 1:2 32HTSSOP
$1.35
Available to order
Reference Price (USD)
1+
$1.35000
500+
$1.3365
1000+
$1.323
1500+
$1.3095
2000+
$1.296
2500+
$1.2825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with the TPS2236DAPR Power Distribution Switch from Texas Instruments. This IC, a key player in the PMIC category, offers superior load driving and power switching capabilities. Tailored for applications like drones, gaming consoles, and HVAC systems, it features precise voltage regulation and minimal heat dissipation. The TPS2236DAPR also supports daisy-chaining for scalable solutions. Texas Instruments delivers ICs that empower your designs with efficiency and innovation.
Specifications
- Product Status: Obsolete
- Switch Type: ExpressCard™ Switch
- Number of Outputs: 6
- Ratio - Input:Output: 1:2
- Output Configuration: High Side
- Output Type: -
- Interface: -
- Voltage - Load: 1.5V, 3.3V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 1.3A
- Rds On (Typ): 45mOhm
- Input Type: -
- Features: Power Good, Status Flag
- Fault Protection: Current Limiting (Fixed), Over Temperature
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 32-HTSSOP
- Package / Case: 32-TSSOP (0.240", 6.10mm Width) Exposed Pad
Related Products
Texas Instruments
TPIC2603DWR
Texas Instruments
TPS22929DDBVT
Microchip Technology
MIC2045-1YTS
Analog Devices Inc.

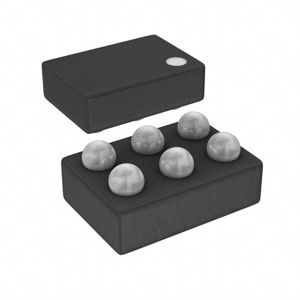

ADP197ACBZ-R7
Texas Instruments

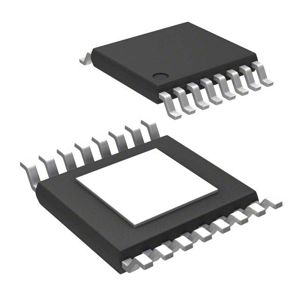

TPS1HB16BQPWPRQ1
Monolithic Power Systems Inc.

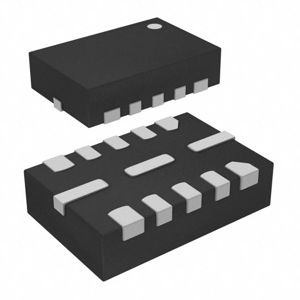

MP5018GD-Z
Texas Instruments
TPS2057D
Infineon Technologies

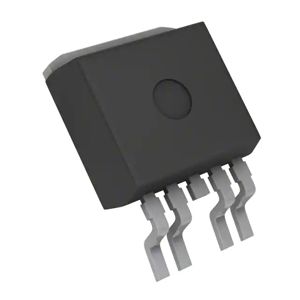

BTS409L1E3062ABUMA1
