TPS2814PW
Texas Instruments
Texas Instruments

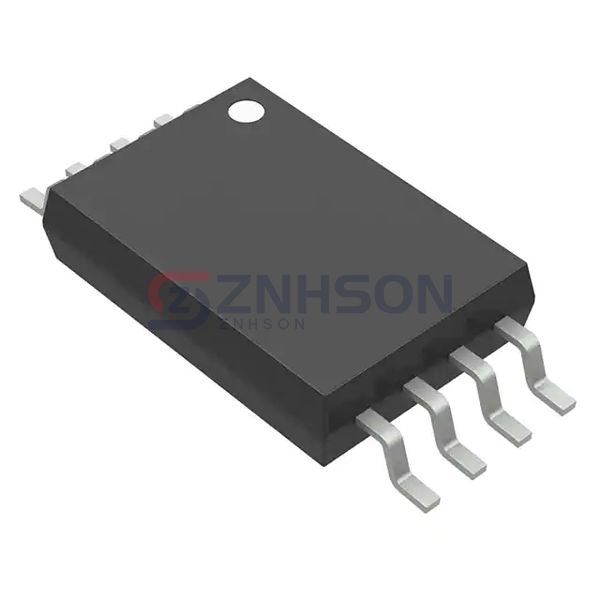

IC GATE DRVR LOW-SIDE 8TSSOP
$0.93
Available to order
Reference Price (USD)
1+
$0.93000
500+
$0.9207
1000+
$0.9114
1500+
$0.9021
2000+
$0.8928
2500+
$0.8835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments presents the TPS2814PW as a revolutionary PMIC - Gate Driver IC engineered for next-gen wide bandgap semiconductors. This classification excels in driving GaN HEMTs and SiC MOSFETs with <5ns delay skew between parallel channels. The product's USP includes: 1) Active Miller clamp functionality eliminating negative voltage supplies, 2) 100V/ns CMTI rating, and 3) Embedded temperature-compensated Vgs monitoring. Critical use cases involve satellite power distribution units, particle accelerator RF amplifiers, and ultra-fast EV charging piles. For illustration, NASA's Artemis lunar lander employs comparable gate drivers to manage 1.2kV SiC modules at 500kHz switching rates in vacuum environments.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Synchronous
- Number of Drivers: 2
- Gate Type: N-Channel, P-Channel MOSFET
- Voltage - Supply: 4V ~ 14V
- Logic Voltage - VIL, VIH: 1V, 4V
- Current - Peak Output (Source, Sink): 2A, 2A
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 14ns, 15ns
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 8-TSSOP
