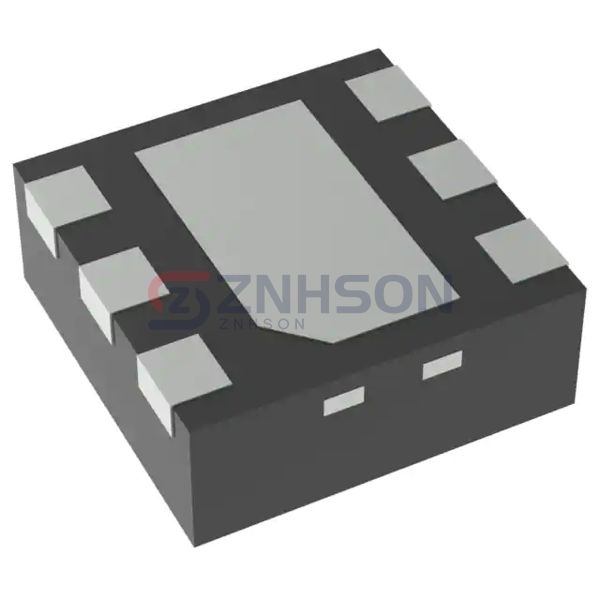

TPS715A01DRVT
Texas Instruments
Texas Instruments
IC REG LINEAR POS ADJ 80MA 6WSON
$1.60
Available to order
Reference Price (USD)
250+
$0.87076
500+
$0.76950
1,250+
$0.60750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TPS715A01DRVT linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TPS715A01DRVT model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 24V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): 15V
- Voltage Dropout (Max): 1.12V @ 80mA
- Current - Output: 80mA
- Current - Quiescent (Iq): 4.2 µA
- Current - Supply (Max): 5.8 µA
- PSRR: 60dB (100kHz)
- Control Features: -
- Protection Features: Over Current, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-WDFN Exposed Pad
- Supplier Device Package: 6-WSON (2x2)
Related Products
Nisshinbo Micro Devices Inc.
R1122N241A-TR-FE
Analog Devices Inc.
ADP1763WACPZ-1.5-R7
ABLIC Inc.
S-1122B48MC-L9HTFU
Analog Devices Inc.
ADM7160ACPZN2.5-R2
Microchip Technology
MIC5317-2.8YMT-TZ
onsemi
NCP662SQ25T1G
ABLIC Inc.
S-13R1B16-M5T1U3
Monolithic Power Systems Inc.

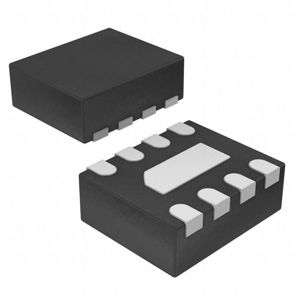

MP20142DGT-LF-P
