TPS72009QDRVRQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 0.9V 350MA 6WSON

Datasheet:

TPS72009QDRVRQ1 Datasheet

$0.72

Available to order

Reference Price (USD)

3,000+

$0.53900

6,000+

$0.51205

15,000+

$0.49280

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS72009QDRVRQ1 by Texas Instruments is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications. In the PMIC - Voltage Regulators - Linear category, the TPS72009QDRVRQ1 stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions. The TPS72009QDRVRQ1 is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 4.5V
Voltage - Output (Min/Fixed): 0.9V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.2V @ 350mA
Current - Output: 350mA
Current - Quiescent (Iq): 38 µA
Current - Supply (Max): 80 µA
PSRR: 85dB ~ 50dB (10Hz ~ 1MHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount

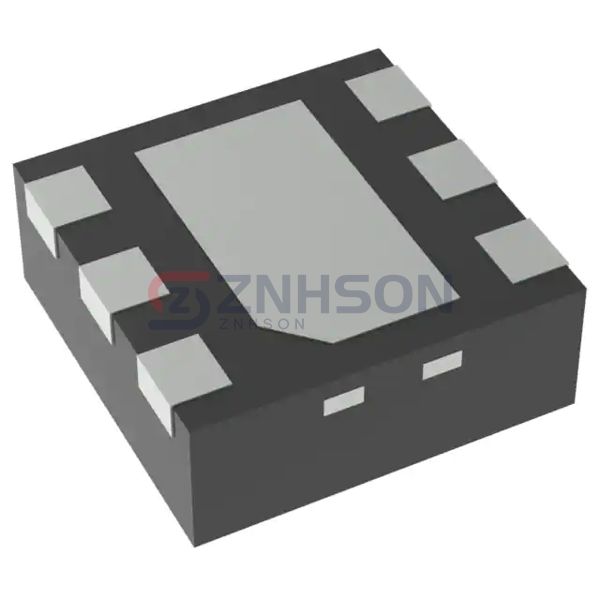

Package / Case: 6-WDFN Exposed Pad
Supplier Device Package: 6-WSON (2x2)
