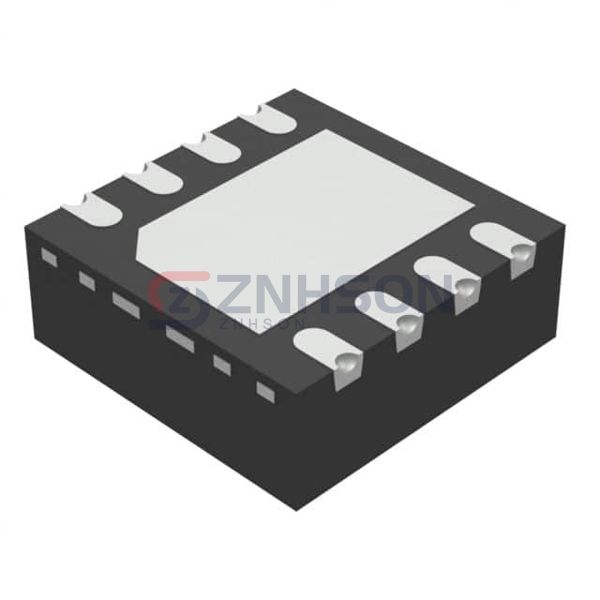

TPS745125PQWDRBRQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC POWER

Datasheet:

TPS745125PQWDRBRQ1 Datasheet

$0.64

Available to order

Reference Price (USD)

$0.63680

500+

$0.630432

1000+

$0.624064

1500+

$0.617696

2000+

$0.611328

2500+

$0.60496

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS745125PQWDRBRQ1 from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 1.25V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.43V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 36 µA
Current - Supply (Max): -
PSRR: -
Control Features: Current Limit, Enable, Power Good
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount, Wettable Flank
Package / Case: 8-VDFN Exposed Pad
Supplier Device Package: 8-SON (3x3)
