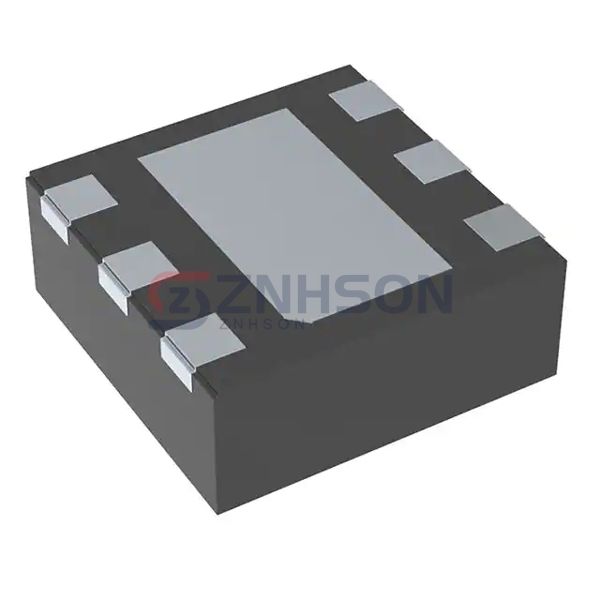

TPS74525PQWDRVRQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 2.5V 500MA 6WSON

Datasheet:

TPS74525PQWDRVRQ1 Datasheet

$1.35

Available to order

Reference Price (USD)

$1.35000

500+

$1.3365

1000+

$1.323

1500+

$1.3095

2000+

$1.296

2500+

$1.2825

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS74525PQWDRVRQ1 from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 2.5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.105V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 36 µA
Current - Supply (Max): -
PSRR: 57dB ~ 35dB (1kHz ~ 1MHz)
Control Features: Enable, Power Good
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 6-WDFN Exposed Pad
Supplier Device Package: 6-WSON (2x2)
