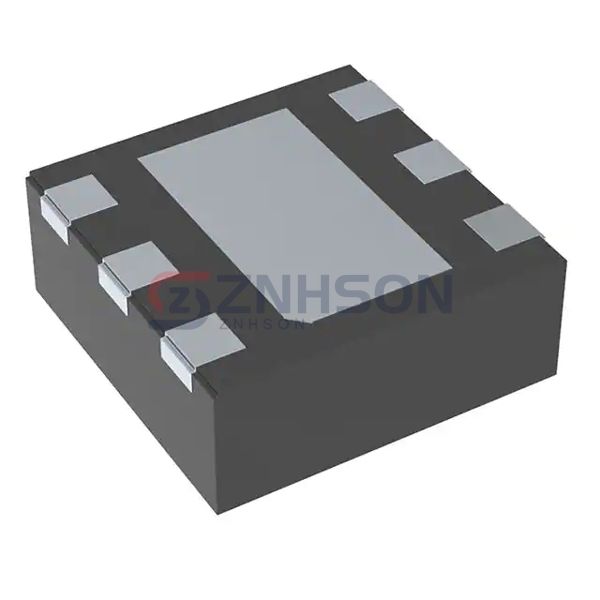

TPS74550PQWDRVRQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 5V 500MA 6WSON

Datasheet:

TPS74550PQWDRVRQ1 Datasheet

$1.35

Available to order

Reference Price (USD)

$1.35000

500+

$1.3365

1000+

$1.323

1500+

$1.3095

2000+

$1.296

2500+

$1.2825

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the TPS74550PQWDRVRQ1 linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this TPS74550PQWDRVRQ1 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.095V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 36 µA
Current - Supply (Max): -
PSRR: 57dB ~ 35dB (1kHz ~ 1MHz)
Control Features: Enable, Power Good
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 6-WDFN Exposed Pad
Supplier Device Package: 6-WSON (2x2)
