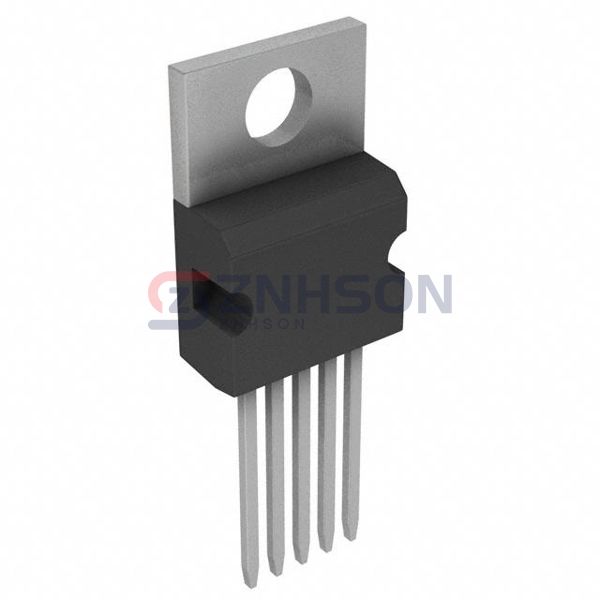

TPS75701KC

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR POS ADJ 3A TO220-5

Datasheet:

TPS75701KC Datasheet

$4.98

Available to order

Reference Price (USD)

$6.93000

10+

$6.26300

50+

$5.97160

100+

$5.18510

500+

$4.51516

1,000+

$3.93255

2,500+

$3.78690

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The TPS75701KC from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.22V
Voltage - Output (Max): 5V
Voltage Dropout (Max): -
Current - Output: 3A
Current - Quiescent (Iq): 200 µA
Current - Supply (Max): -
PSRR: 62dB (100Hz)
Control Features: Enable, Power Good
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Through Hole
Package / Case: TO-220-5
Supplier Device Package: TO-220-5
